Grandstream Networks GWN7000 - Figure 63:Branch Router Ipsec Phase 2 Configuration

P a g e | 105
GWN7000 User Manual
Version 1.0.6.28
DPD delay
Configures the delay for DPD keepalive packets for the specific
connection.
DPD timeout
Configures the length of time it will remain idle without
receiving any response from the peer.
DPD action
This provides the user with a set of actions to perform if the peer is
considered to be dead.
• hold- all routes will be put on hold
• clear- routes and SA will be cleared.
• restart-all SA’s to the dead peer will be renegotiated.
Press Save, then go to phase2 tab in order to configure the phase 2 parameters as folllow

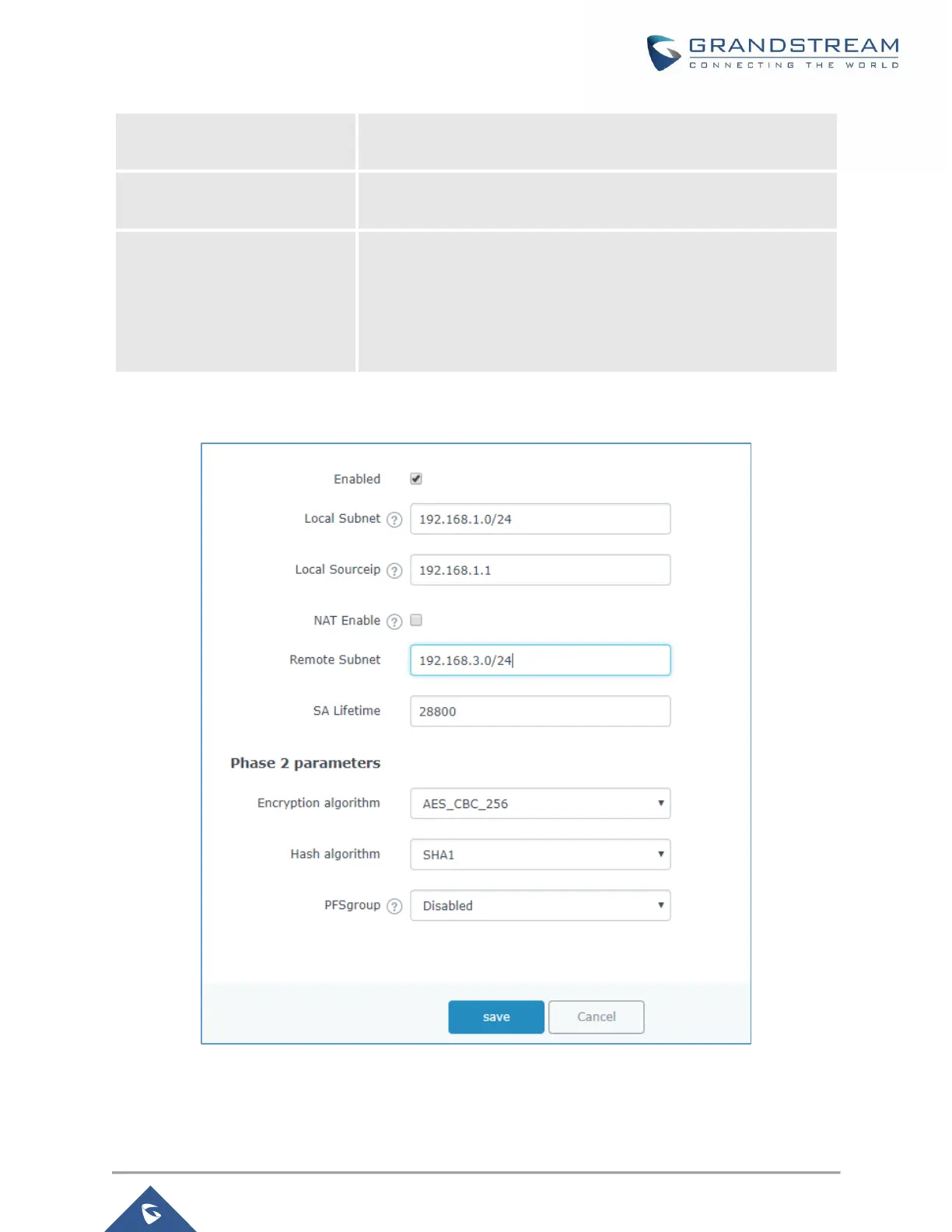

Figure 63:Branch Router IPSec Phase 2 Configuration
After this is done, press save and apply the settings, then configure same settings for phase 1 on the HQ
router, as for phase 2 configuration parameters they should be as following:
