P a g e | 93

GWN7000 User Manual

Version 1.0.6.28

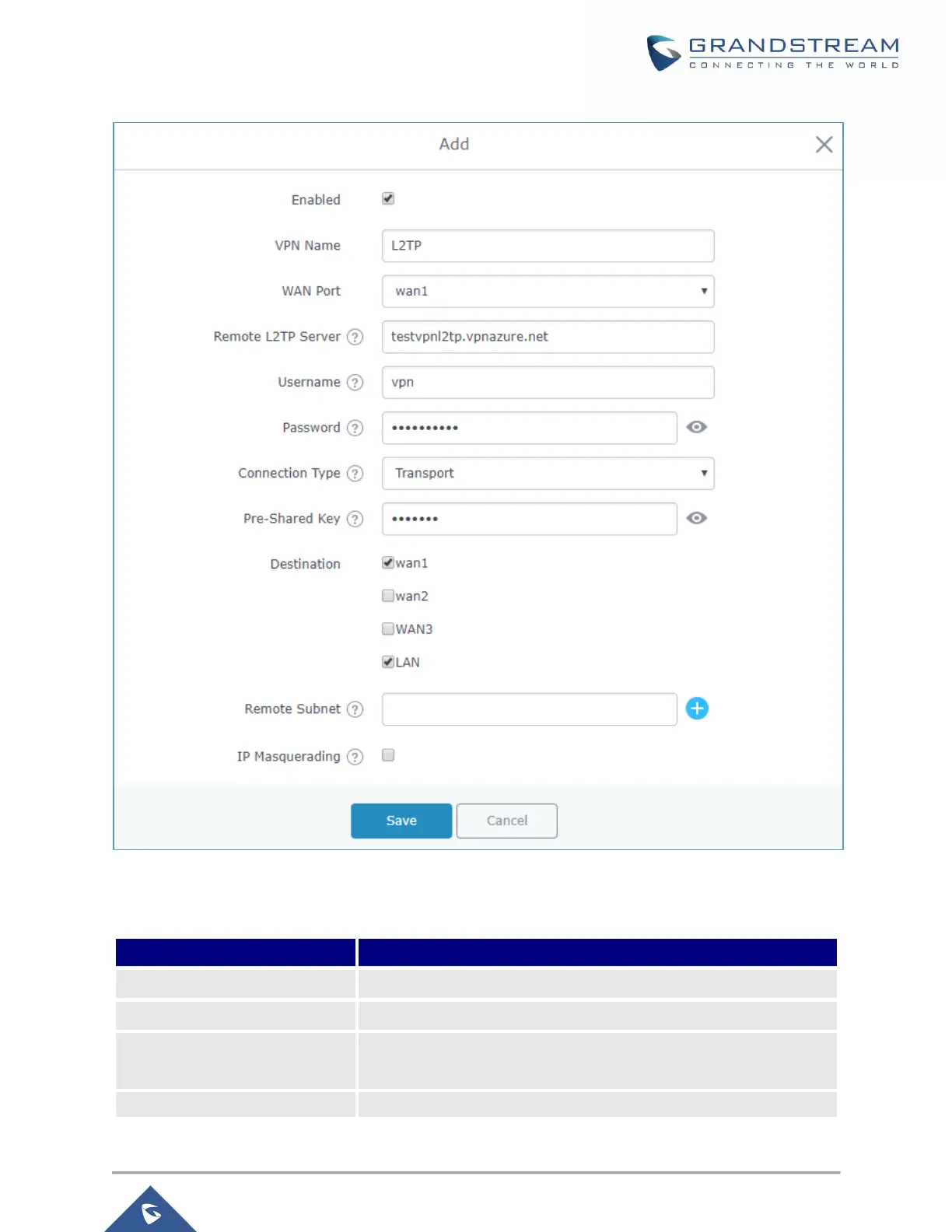

Figure 57: L2TP Client Configuration

Table 30: L2TP Configuration

Field

Description

Enable

Click on the checkbox in order to enable the L2TP client feature.

VPN Name

Enter a name for the L2TP client.

WAN Port

Select which WAN port is connected to the uplink, either WAN1 or

WAN2.

Remote L2TP Server

Enter the IP/Domain of the remote L2TP Server.

Default Chapter3
