Table 13: Port Mirroring
Enable Outgoing
Mirroring
Check to enable outgoing mirroring for a LAN port. Default is “Disabled”
Enable Incoming
Mirroring
Check to enable incoming mirroring for a LAN port. Default is “Disabled”
Mirroring Port
Select which LAN port that will be mirroring traffic. Default is “Disabled”
Mirrored Port
Select which LAN port that will act as mirrored port. Default is “Disabled”
Use Custom Port
Mapping
Use this option in order to enable VLAN tagging on the ports or disable it or block
the port from participating in the selected VLAN, click on button to change the
settings.
Three options are available for each port:
• Tagged: the port will participate on the VLAN and will tag the outgoing
frames with the 802.1q VLAN id.
• Untagged: The port will participate on the VLAN but will not tag outgoing
frames.
• Off: The port will not participate on the VLAN.

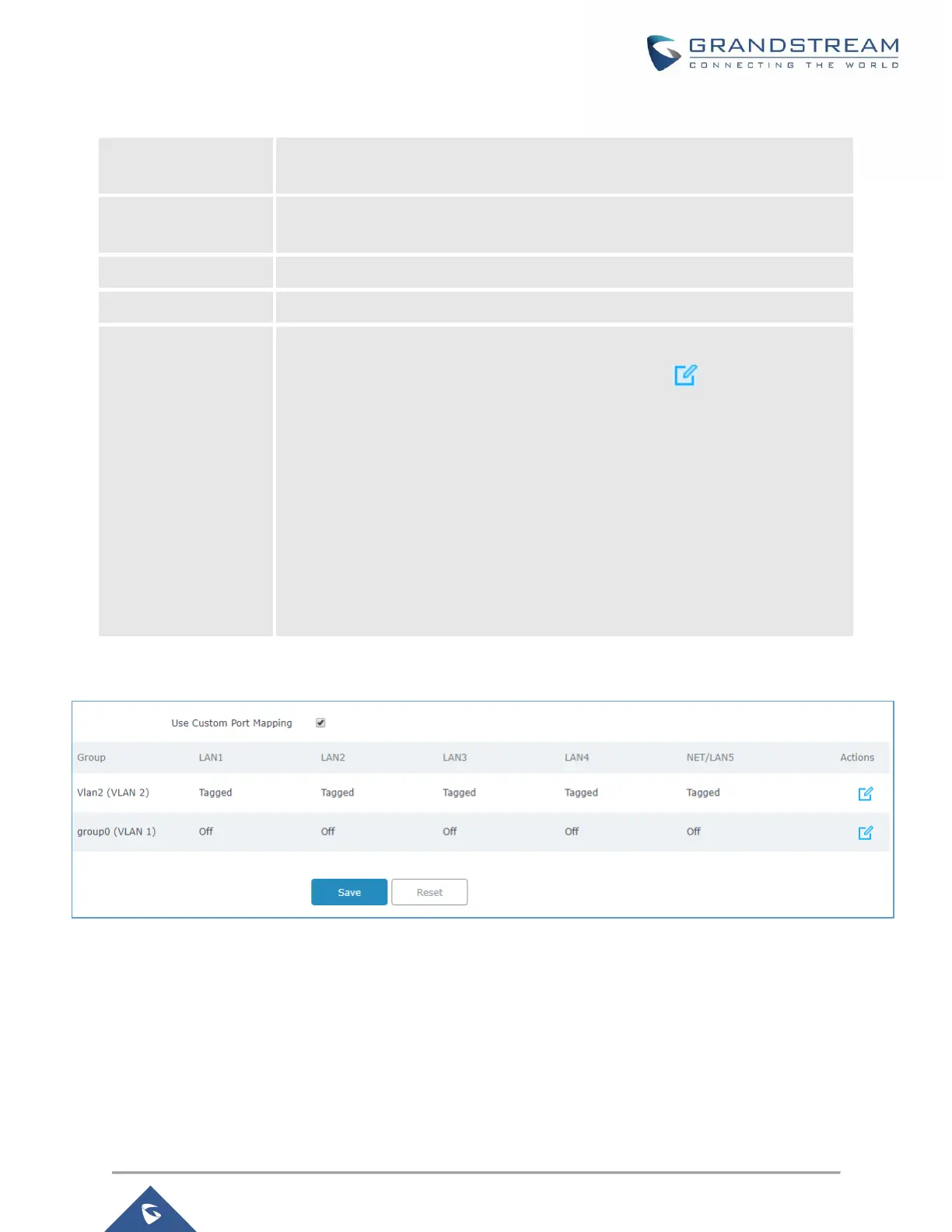

Figure 15 : Custom Port VLAN Mapping
