P a g e | 52

GWN7000 User Manual

Version 1.0.6.28

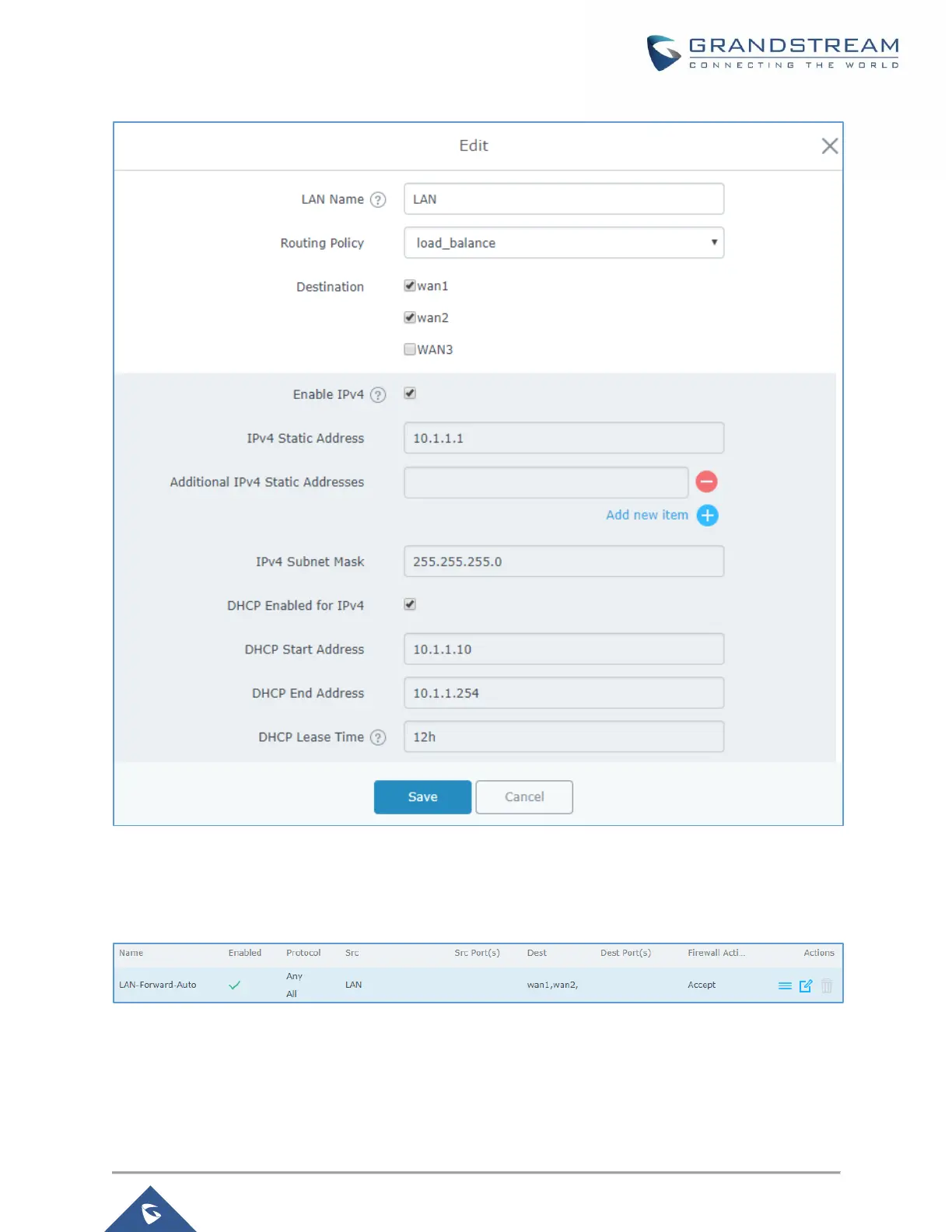

Figure 23: LAN Routing Policy

This will generate the firewall forward rule automatically to allow traffic to pass from LAN to WAN while

respecting the load balance policy.

For the VoIP traffic and in order to route it via the WAN3, users need to go under “Firewall → Traffic Rules

→ Forward” and add a new rule as follow.
