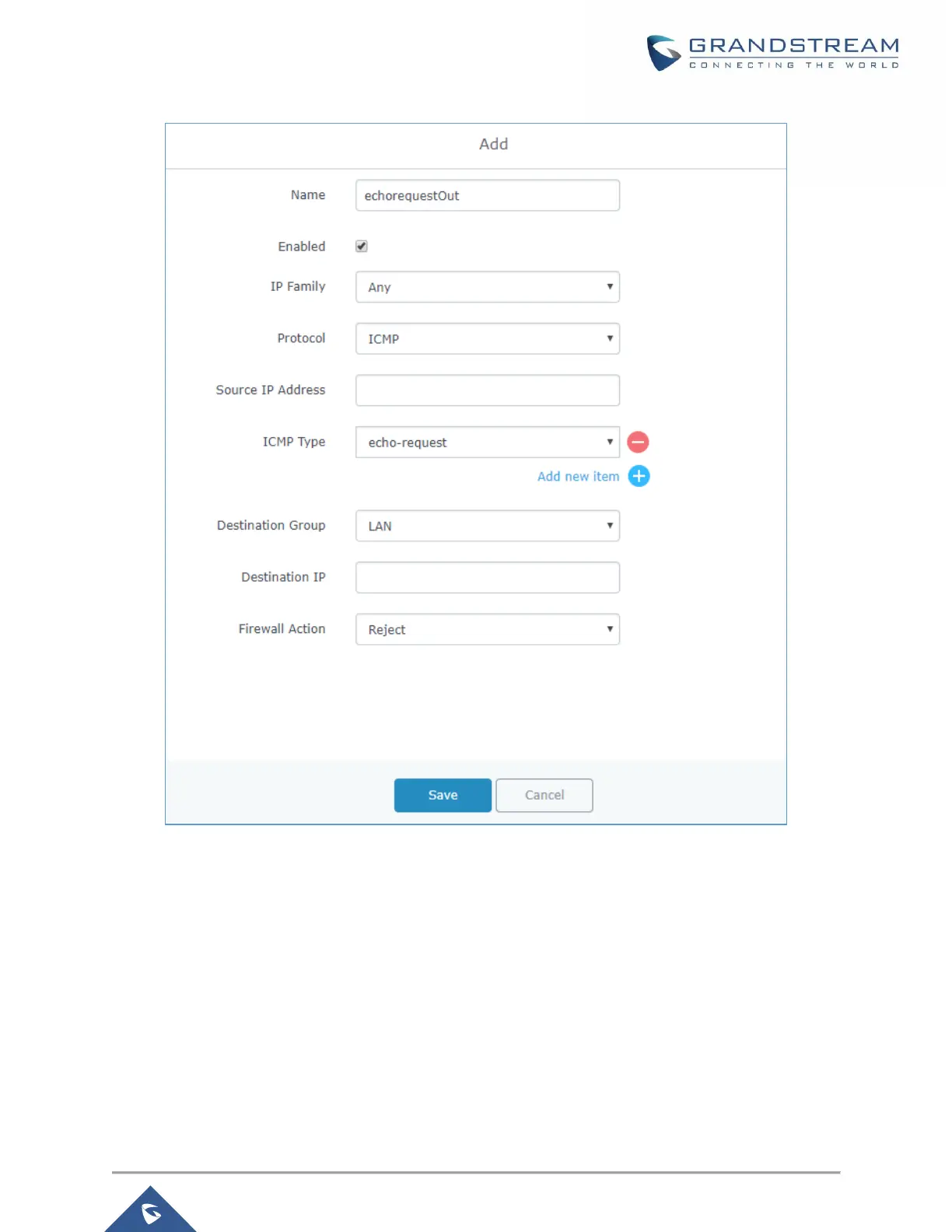

Figure 69: Output Rules Sample
GWN7000 offers the possibility to allow traffic between different groups and interfaces.
Users can select to edit a source group and add to it other network groups and WAN interfaces to allow
inter-group traffic between the selected members.
This will either use firewall rules or policy-based routing rules, if the action select is ACCEPT, DROP or
REJECT then the firewall rule will apply, otherwise if users want to trigger the policy-based routing, then the
action should be set to MATCH in order to match the traffic and apply the routing policy.
For further details, check the Policy Routing section.
