P a g e | 53

GWN7000 User Manual

Version 1.0.6.28

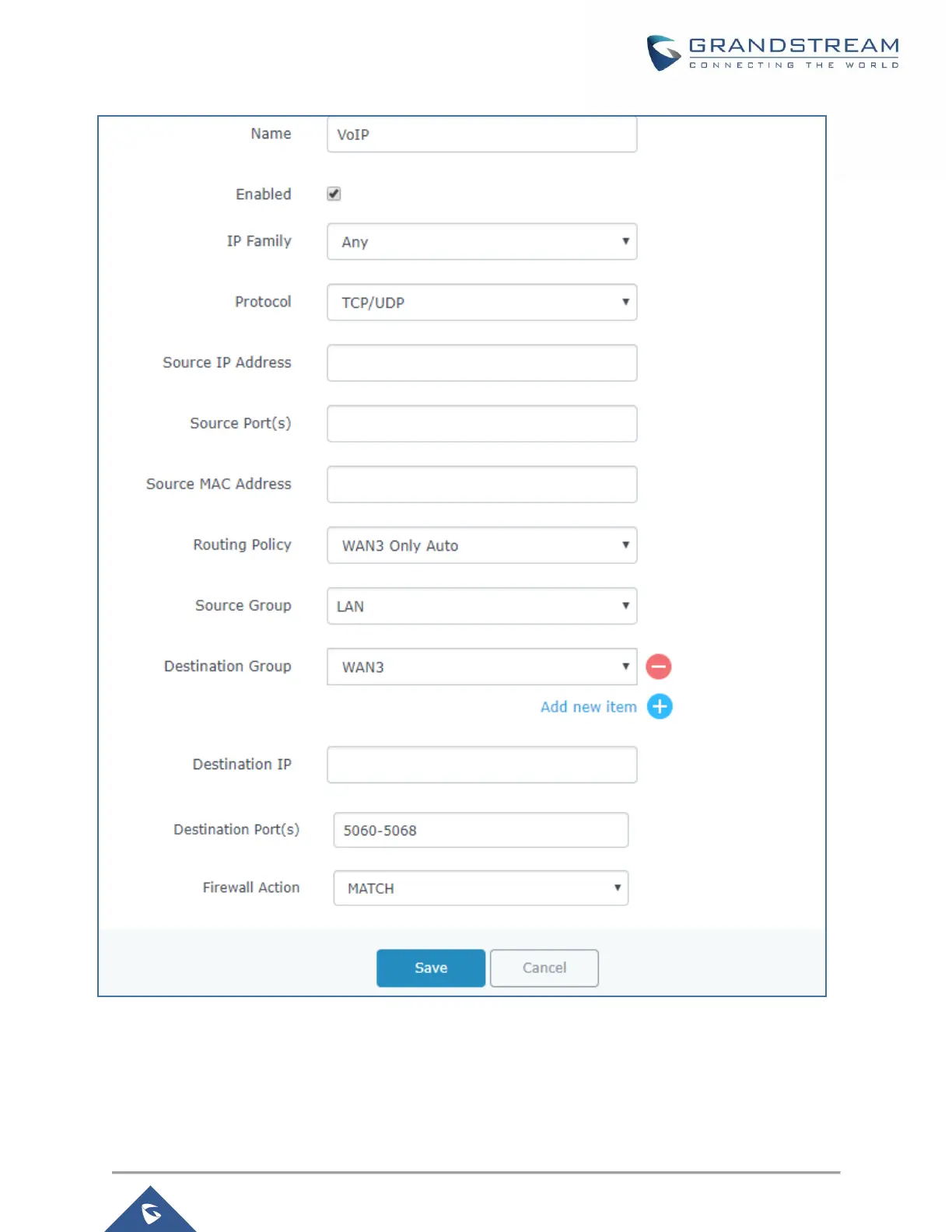

Figure 24: Configuring Firewall Rule using Route Policy

This way the VoIP traffic which uses the TCP or UDP ports 5060 through 5068 will be routed over WAN3.
