P a g e | 148

GWN7000 User Manual

Version 1.0.6.28

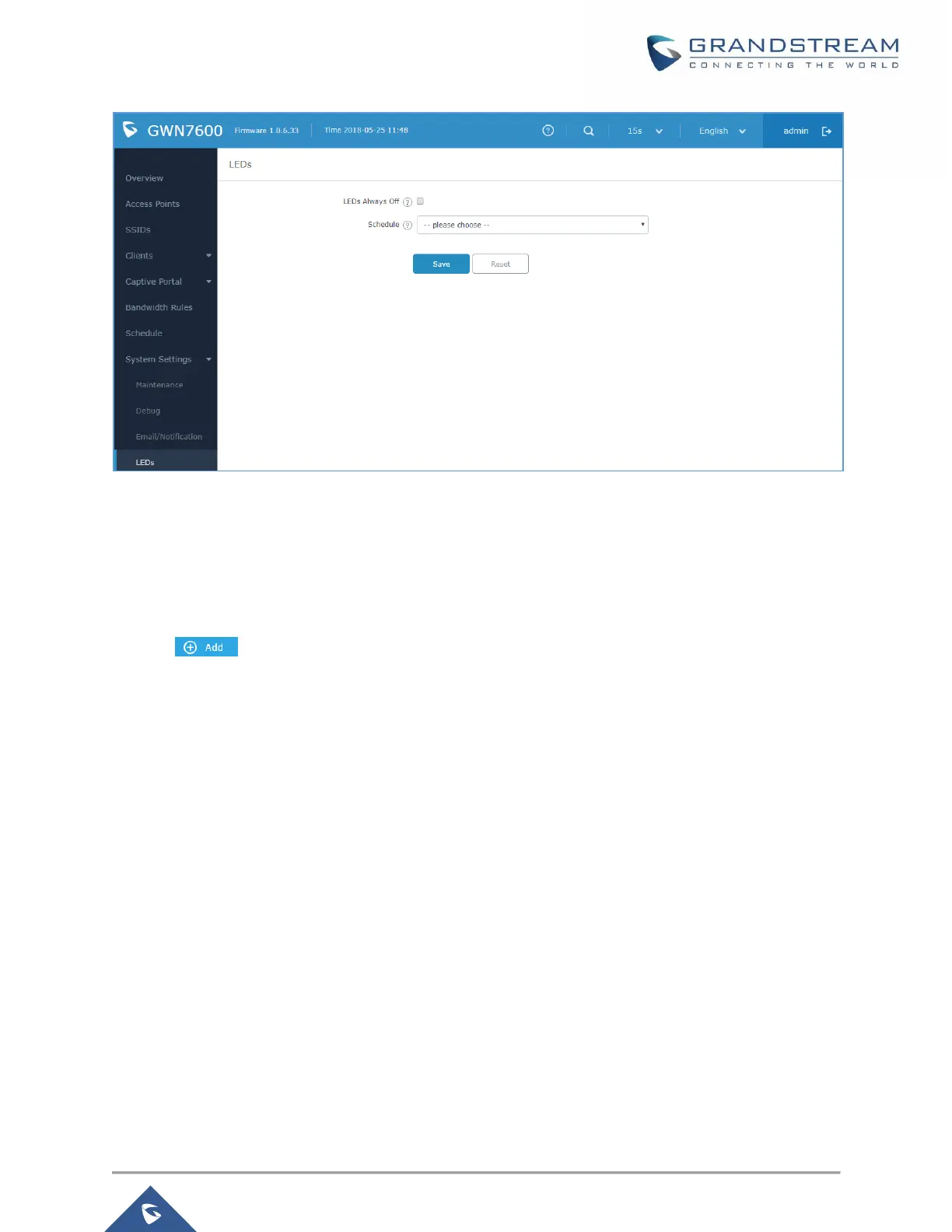

Figure 94: LED Scheduling Sample

File Sharing

The GWN7000 has 2 USB ports that can be also used for file sharing, to enable file sharing on devices

plugged on the USB ports, go to System Settings→File Sharing.

Click on to share a directory and its contents on a device connected to one of the USB ports of

the GWN7000, the following figure will pop up.
