Grandstream Networks GWN7000 - Figure 84: Clients ACL

To Next Page

To Previous Page

P a g e | 134

GWN7000 User Manual

Version 1.0.6.28

We assume that we have already created a blocking policy under “System Settings → Website blocking

→ Blackhole Policy” to set Facebook.com as bad domain.

Next, go under “Clients → Client Access” to define the list of clients to whom the policy will apply.

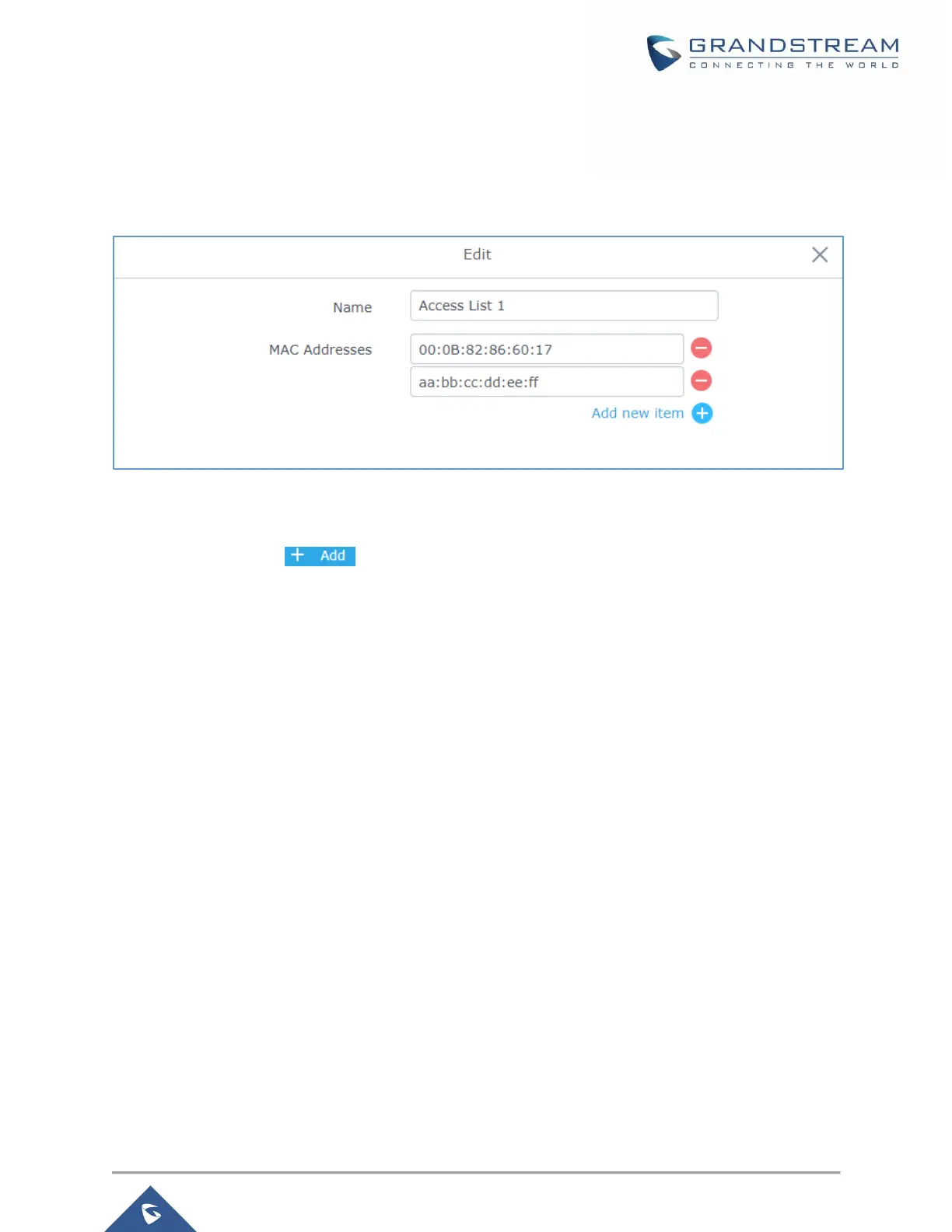

Figure 84: Clients ACL

Finally, and in order realize the scenario above, go under “System Settings → Website Blocking → Client

Blackhole” and click on .
