Hach 5500sc SiO2 Installation

Remove the access cover
Remove the access cover to connect to the wiring terminals. Refer to Figure 11.

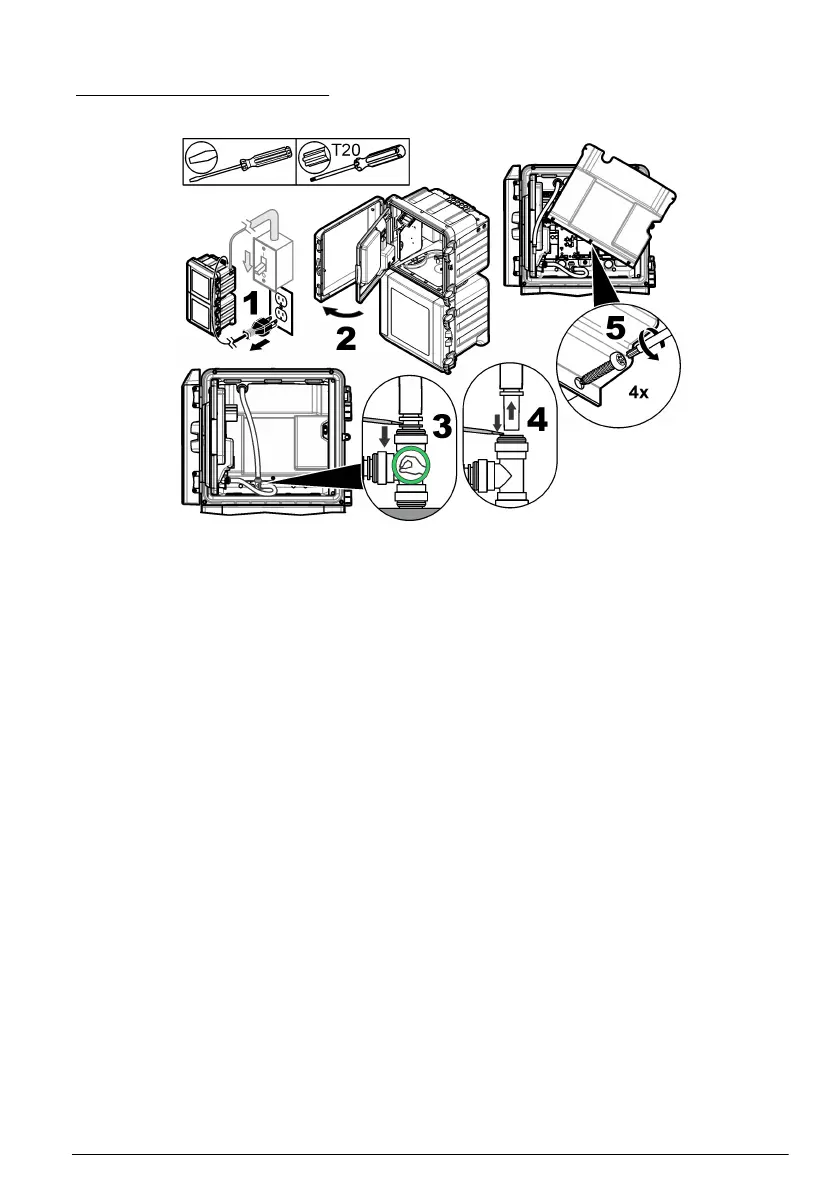

Figure 11 Access cover removal
Wiring connections overview
Figure 12 shows all of the possible wiring connections. Make sure to use the wire gauge that is
specified for the connection (refer to Specifications on page 21).
English
13

Hach 5500sc SiO2 Specifications

General

Power Requirements	100 - 240 VAC, 50/60 Hz
Resolution	0.001 mg/L
Light Source	LED
Detector	Photodiode
Sample Flow Rate	200 to 500 mL/min
Operating Temperature	5 to 45 °C
Sample Temperature	5 to 45 °C
Outputs	4-20 mA
Enclosure	NEMA 4X/IP66
Method	Heteropoly blue method
