Hach 5500sc SiO2 Installation

Install the stir bar
A stir bar is included in the installation kit. Prior to the installation, remove the funnel cover, funnel
and colorimeter cover. Refer to Figure 17. Install the stir bar in the sample cell of the colorimeter as
shown in the illustrated steps. Refer to Figure 18.

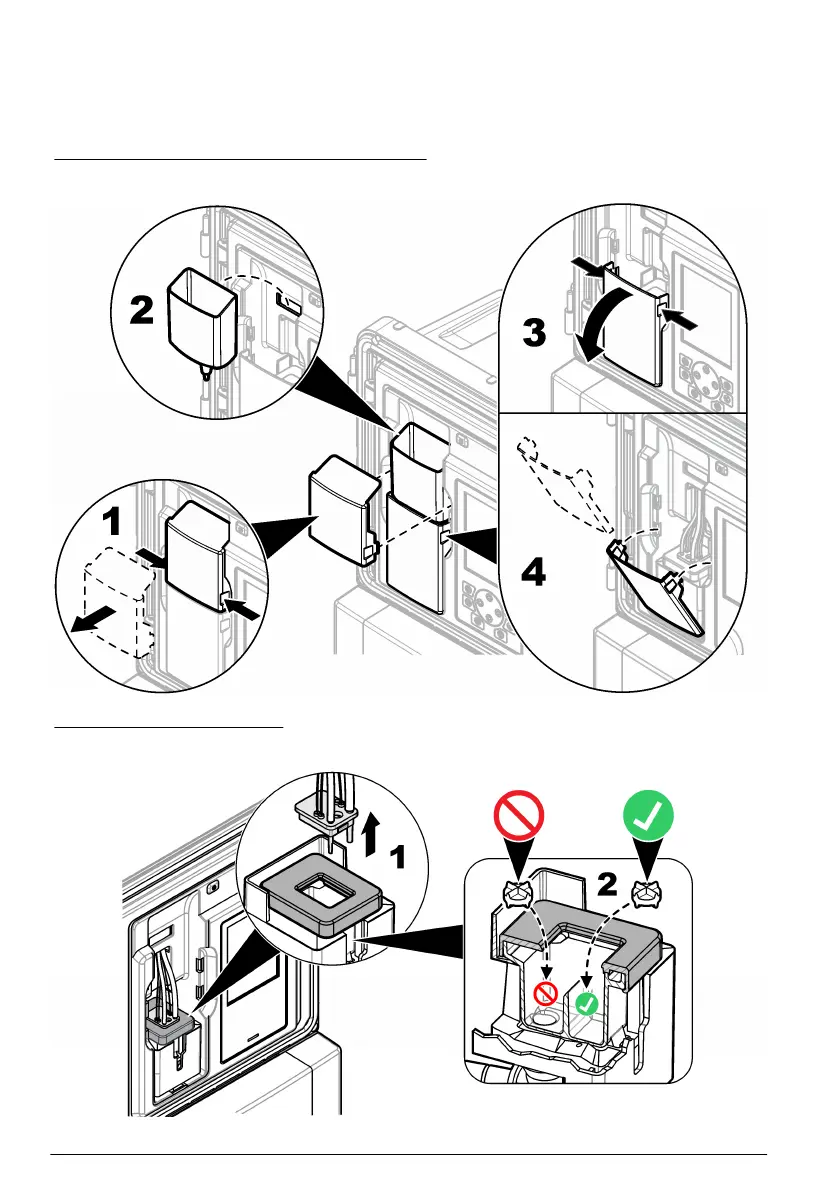

Figure 17 Colorimeter cover and funnel removal
Figure 18 Stir bar installation
20 English

Hach 5500sc SiO2 Specifications

General

Power Requirements	100 - 240 VAC, 50/60 Hz
Resolution	0.001 mg/L
Light Source	LED
Detector	Photodiode
Sample Flow Rate	200 to 500 mL/min
Operating Temperature	5 to 45 °C
Sample Temperature	5 to 45 °C
Outputs	4-20 mA
Enclosure	NEMA 4X/IP66
Method	Heteropoly blue method
