Performing diagnostic tests
6. Measure and record the RF forward-path output at each port at the external RF test points, two on
either side of the base.

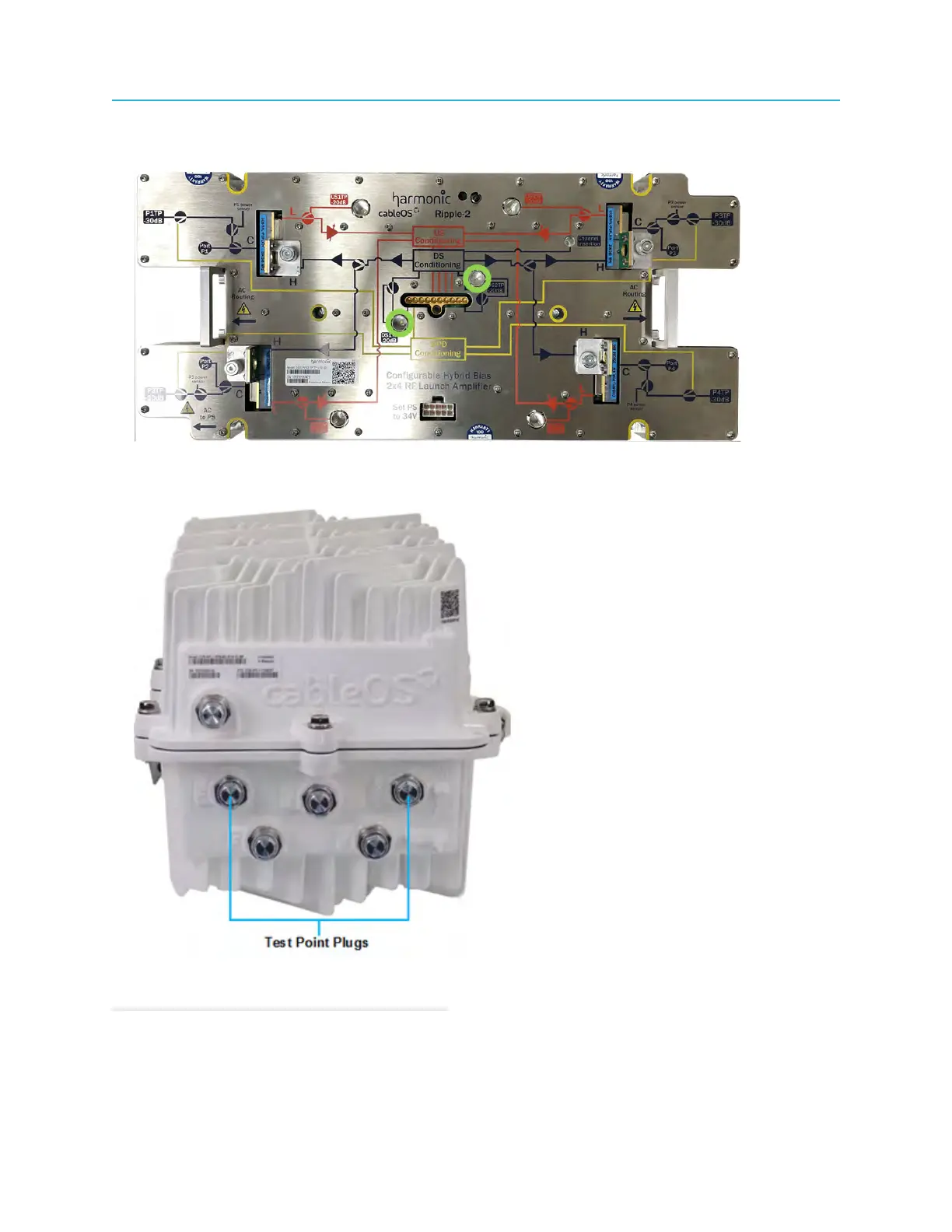

Figure 7-3: Internal forward-path RF test points
Use a G-FAL RF adapter to access the RF test point connection.
Figure 7-4: External forward path RF test points
Related information
Checking the AC power level on the Ripple-2 node
105 Installation Guide
