Chapter 4: Installing the Ripple-2 Node
4. Secure the node housing to the pedestal bracket using the messenger-clamps and bolts removed
in Step 1; insert the bolts through the pedestal mounting holes and then screw them into the node
housing screw holes.
Use the clamps as spacers, as needed.

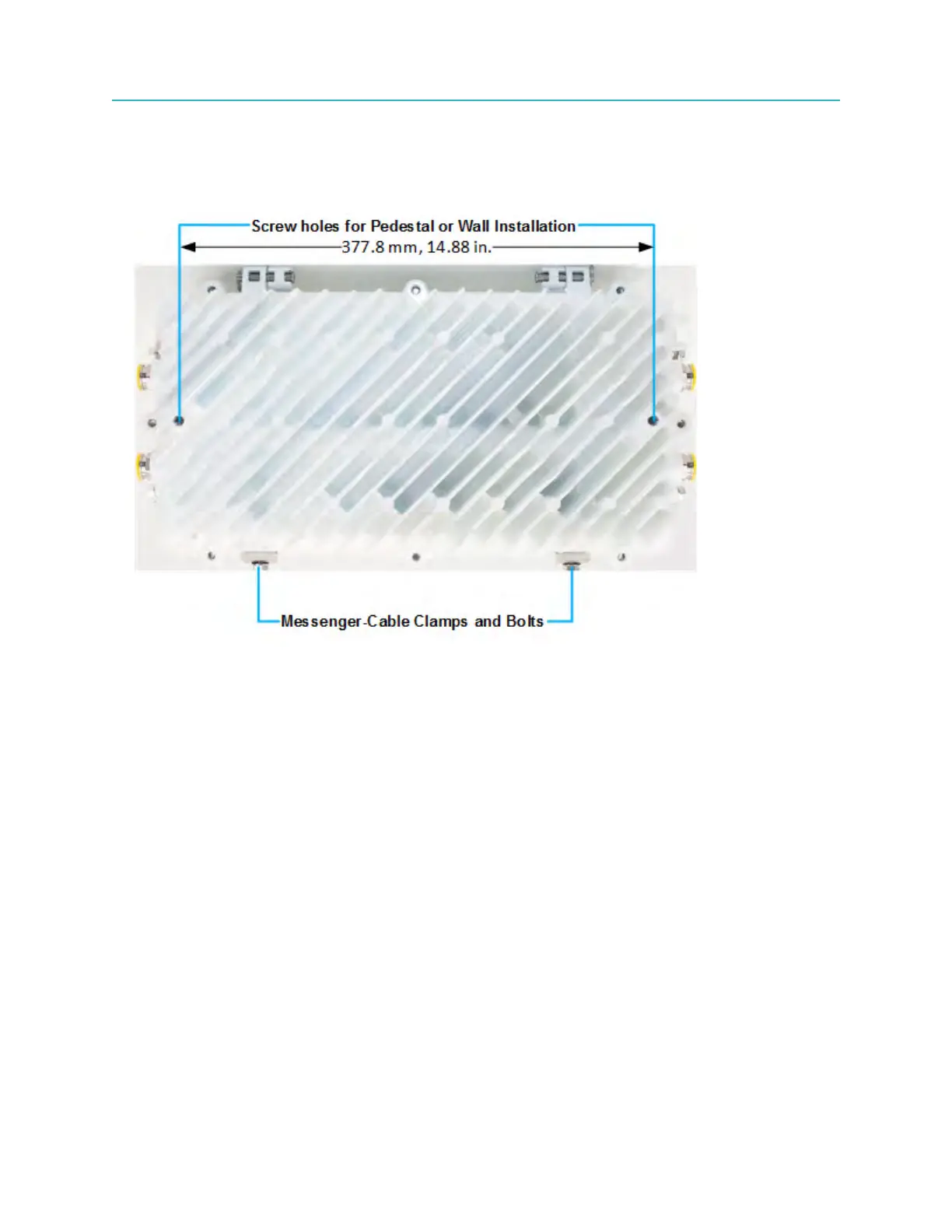

Figure 4-16: Screw holes for pedestal or wall mounting
5. Torque the bolts to 8–10 ft-lbs (10.8–13.6 Nm).
