Chapter 4: Installing the Ripple-2 Node
5. Tighten the node housing bolts in the prescribed order to a torque of 8-10 ft-lbs; tighten the bolts in the
order shown on the lid flange next to each bolt and in the figure below.
IMPORTANT: Failure to properly torque will result in water ingress.

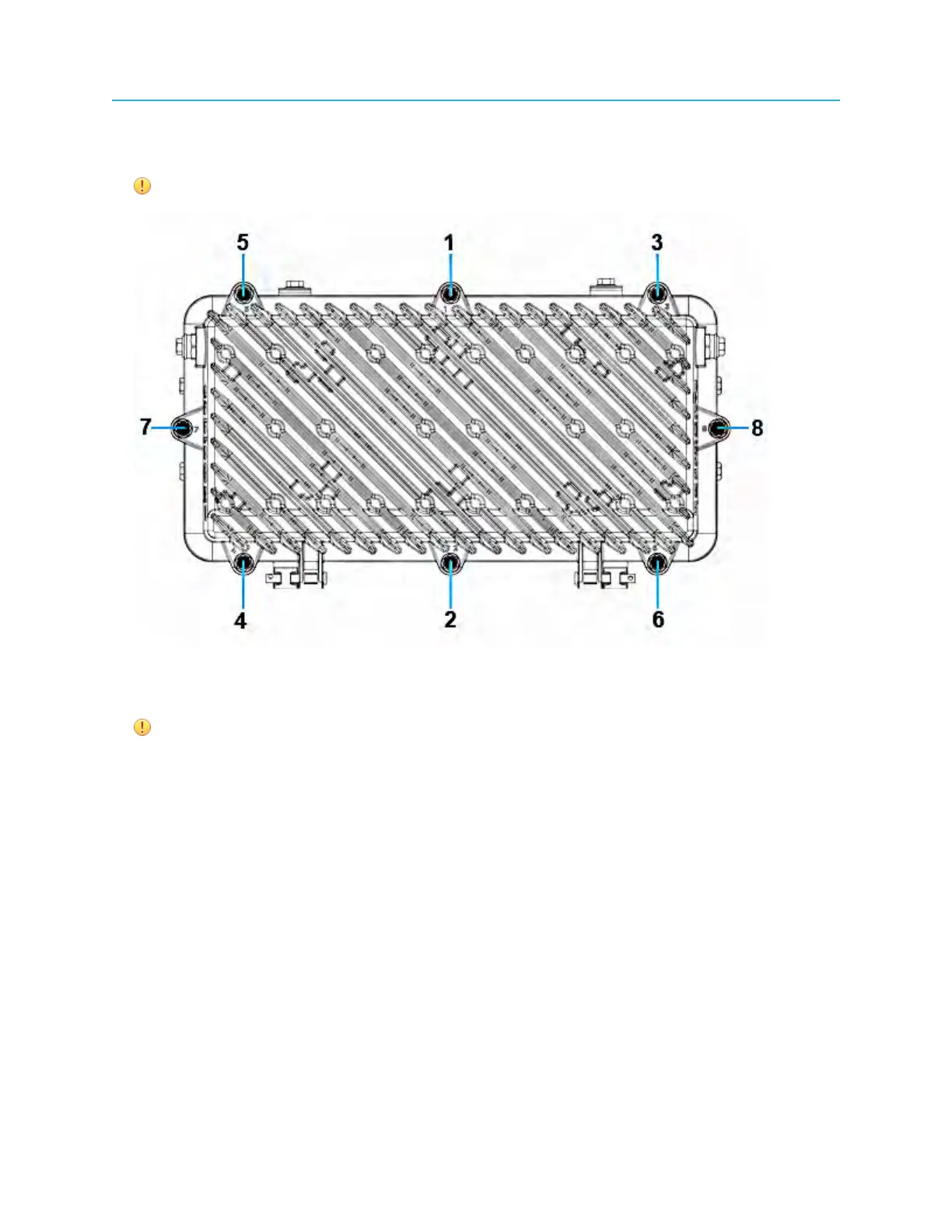

Figure 4-19: Ripple-2 node lid bolt tightening sequence
6. Install O-ring watertight plugs into unused RF ports, tighten and torque to 8 ft-lbs.
IMPORTANT: Failure to do so will result in water ingress.
7. Replace any damaged heat shrink tubing on the node cable entry connections.
Result: The Ripple-2 node installation is now complete.
