Chapter 1 Introduction Mechanical Structure
© 2013 Harmonic Inc. Harmonic All rights reserved. 18 Ellipse 3000 Release 3.0, Rev. B
1.4.2.1 Ellipse 3100 Rear Panel

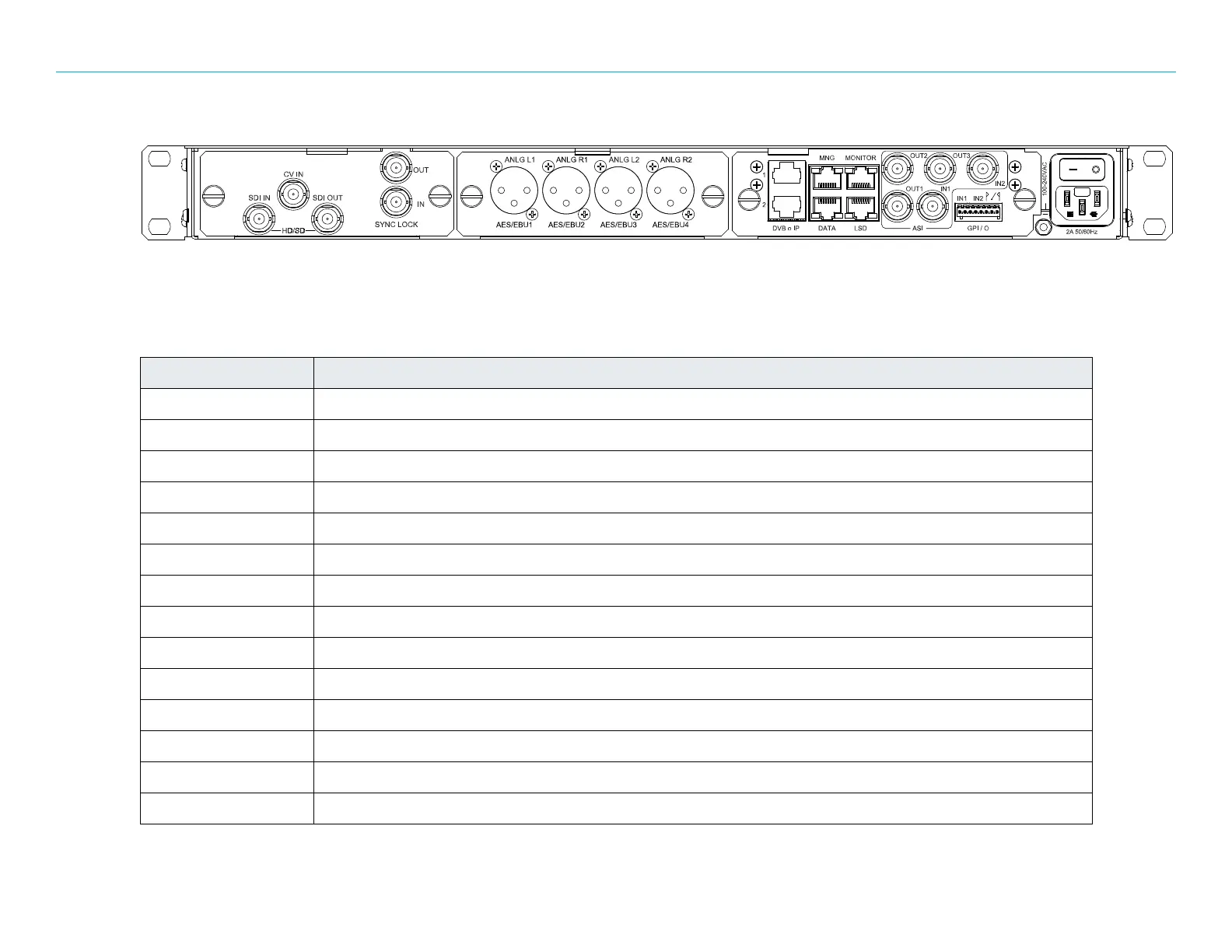

Figure 1–3: Ellipse 3100 MPEG-2/H.264 CV and SD/HD SDI
Table 1–1 describes the connectors on the rear panel.
Table 1–1: Ellipse 3100
Connector Description
SDI IN 1x SMPTE 259M/292M SDI input
CV IN 1x Composite Video (CV) input
SDI OUT 1x SMPT 259M/292M SDI loop through output
SYNC LOCK IN, OUT Front end synchronization clock. IN: for external clock, OUT: for loop through
AES/EBU1–4 4x IEC 60958 AES/EBU 1–4 audio inputs
ANLG L,R 2x Pairs of analog left/right stereo inputs
ASI IN1,2 2x DVB-ASI input interface
ASI OUT 1,2,3 3x DVB-ASI output interface
DVB o IP 1,2 2x GbE IP interfaces
MNG 1x RS-232 serial connector for management
DATA 1x Serial connector for MPE interface
MONITOR 1x External monitor connection for input video monitoring. For advanced users and/or Harmonic technical support personnel.
LSD 1x Low Speed Data connector
GPI/O 1x General Purpose Interface configurable Output (GPI/O) dual dry connectors for alarms
