Chapter 1 Introduction Mechanical Structure
© 2013 Harmonic Inc. Harmonic All rights reserved. 19 Ellipse 3000 Release 3.0, Rev. B
1.4.2.2 Ellipse 3200 Rear Panel

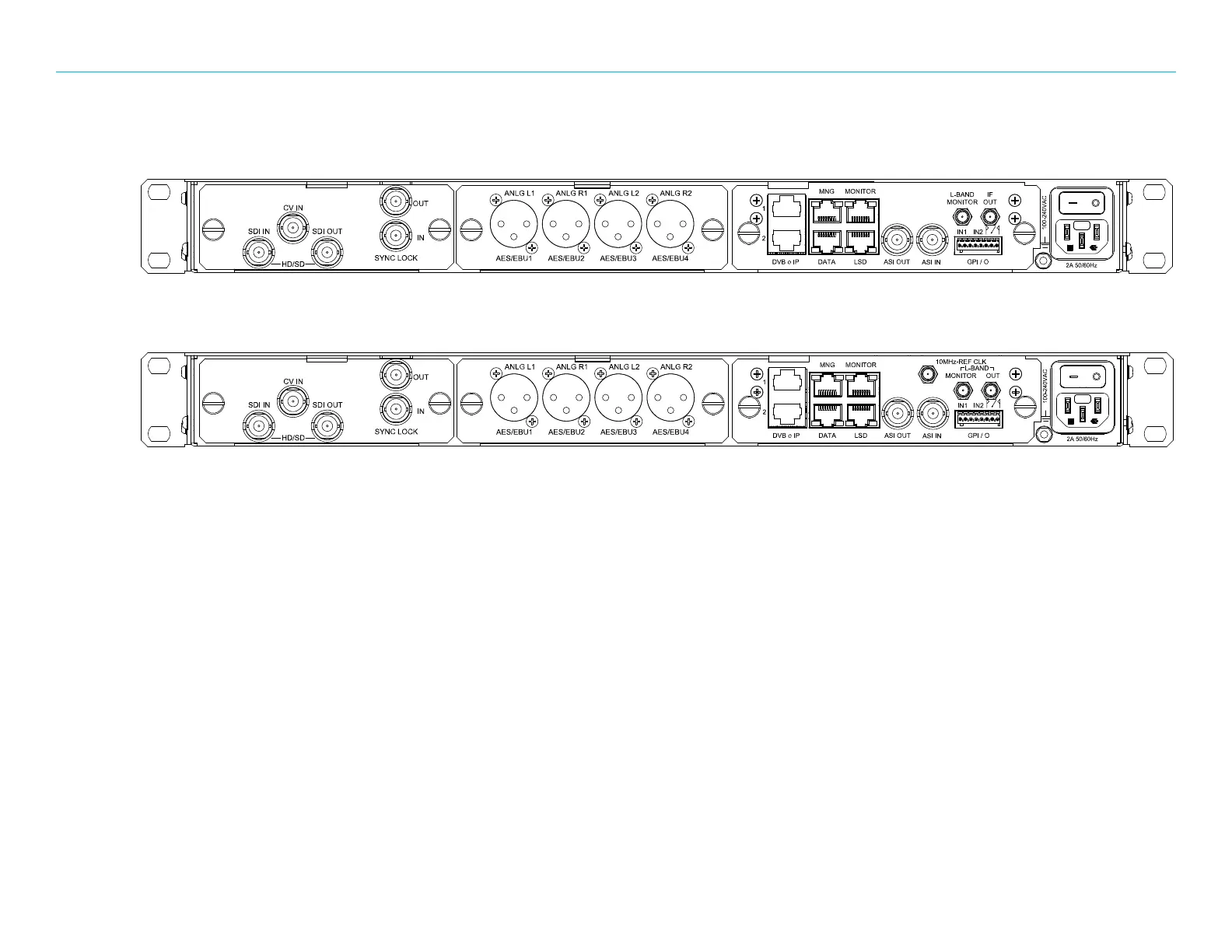

Figure 1–4: Ellipse 3200 IF Modulator MPEG-2/H.264 CV and SD/HD SDI
Figure 1–5: Ellipse 3200 L-Band Modulator MPEG-2/H.264 CV and SD/HD SDI
