3-16 888-2629-200 10/6/10
WARNING: Disconnect primary power prior to servicing.
Section 3 Operation
Maxiva ULX COFDM Series
NOTE:
If the load interlock is open and the transmitter is switched to the "Test Load"
position, the transmitter output will be muted. If a test load interlock is not used
the appropriate connection on the interlock connector on the customer I/O panel
must be jumpered. For more information see "2.9 External Interlock Connec-
tions" on page 2-32.
3.7.1 Output Faults
This screen shows faults which are considered Cabinet or System level such as VSWR,
Power High, foldback etc....
• An active fault will be highlighted in RED
• A warning condition will be highlighted in YELLOW
A detailed explanation of each of these faults is given in Section 6, Diagnostics.

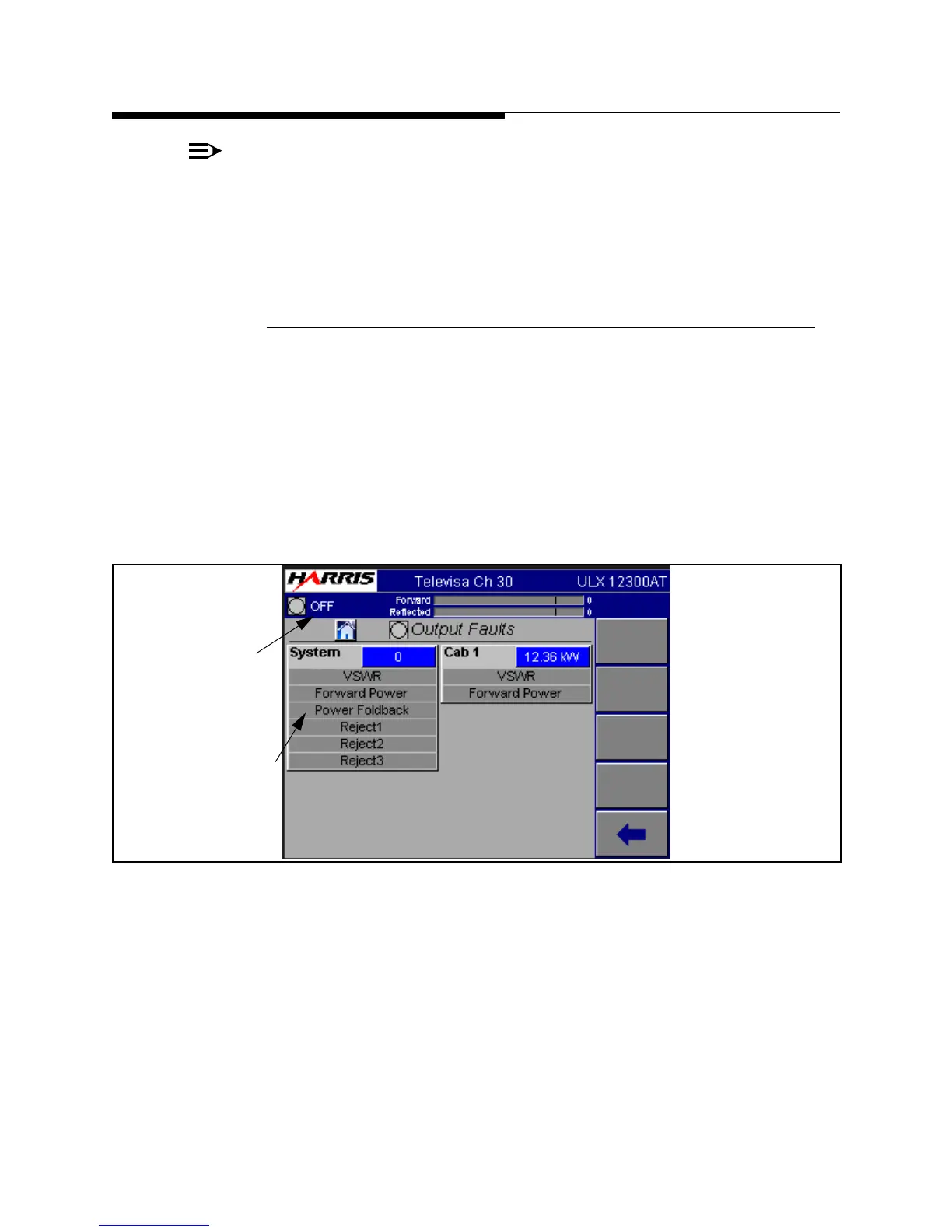

Figure 3-11 Output Faults Screen
To Figure 3-10
ON becomes
ON/FB in fold-
back condition.
Background turns
yellow in foldback.
To Next Page
