10/6/10 888-2629-200 3-29
WARNING: Disconnect primary power prior to servicing.
Section 3 Operation
Maxiva ULX COFDM Series

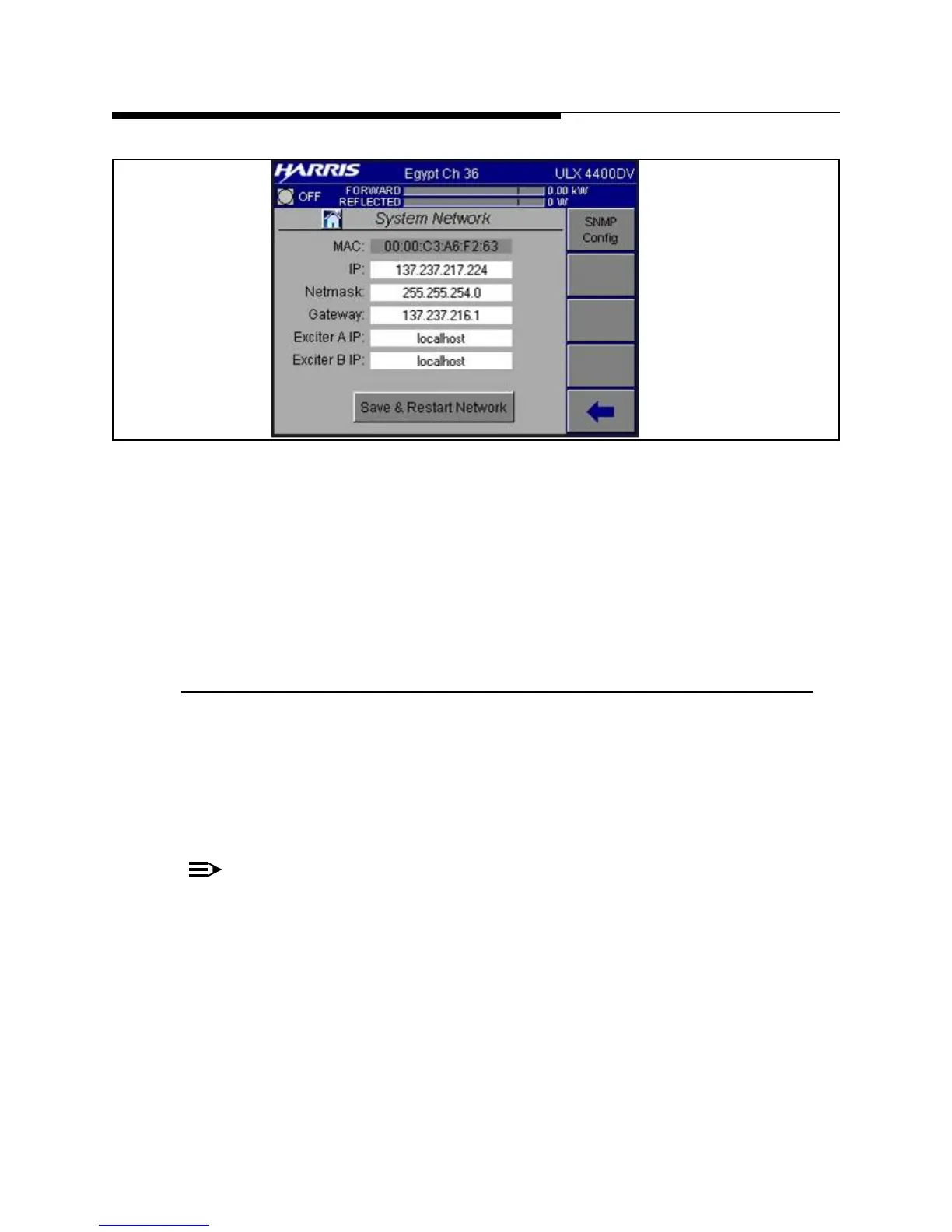

Figure 3-25 System Network Screen
The System Network screen when viewed from the local GUI has an additional button
called Save & Restart Network. When a change is made to one of the network
parameters (IP address, mask, etc.) the networking system has to be restarted before the
change is implemented. Save & Restart saves the change and restarts the network
system so the change is made permanent and the new parameters become active.
3.10 GUI Menu Structures
Figure 3-26 on page 3-30 shows the menus which can be accessed on the GUI. This
menu tree may be helpful when learning to navigate the screens. The blocks on the left
represent the main menus which can accessed using one of the 5 software buttons on the
right side of the GUI HOME Page. Each successive level (to the right) represents
software buttons which will show up on the right side of the GUI submenu screens.
NOTE:
Multi-cabinet Maxiva Series transmitters will require an extra button press at the
top level menus to select the desired cabinet.
To Figure 3-17
To Next Page
