10/6/10 888-2629-200 2-29
WARNING: Disconnect primary power prior to servicing.
Section 2 Installation
Maxiva ULX COFDM Series
2.7 Signal and Ground Connections
NOTE:
Control and signal wires should never be run in the same conduit with any AC
wiring. A separate conduit should be used for control/signal cables.
STEP 1 Connect the RF Inputs to the customer I/O panel at the top of the
transmitter (see Figure 2-9).

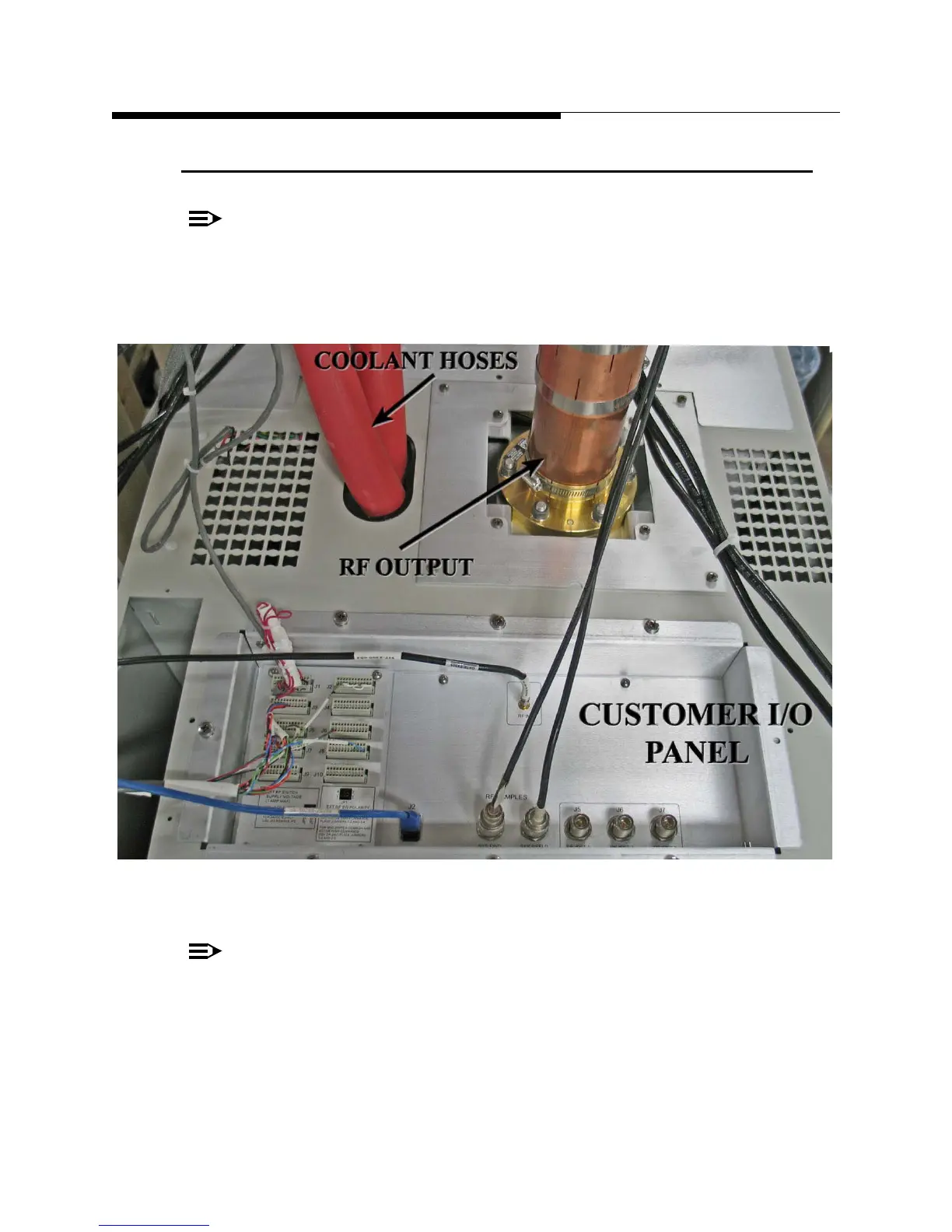

Figure 2-9 Customer I/O Panel (top of transmitter)
NOTE:
Refer to the Apex M2X technical manual for RTAC sample levels.
