10/6/10 888-2629-200 3-27
WARNING: Disconnect primary power prior to servicing.
Section 3 Operation
Maxiva ULX COFDM Series
3.9.3.3 Cabinet Setup
• Cab Pwr Out (W): Set cabinet output power here. This is the power out of the cabi-
net before the combiner or filter. This needs to be set for each cabinet. Sets cabinet
nominal power used to set ALC level. Maximum cabinet power is limited to 10%
over this value.
• Number of PA’s: Enter the number of PA modules in the selected cabinet. This needs
to be set for each cabinet.
• Number of IPA’s: Enter the number of IPA modules in the selected cabinet. This
needs to be set for each cabinet.
• Cooling Pumps: Set this to either 1 or 2 depending on how many pumps are in pump
module for this cabinet. This needs to be set for each cabinet.

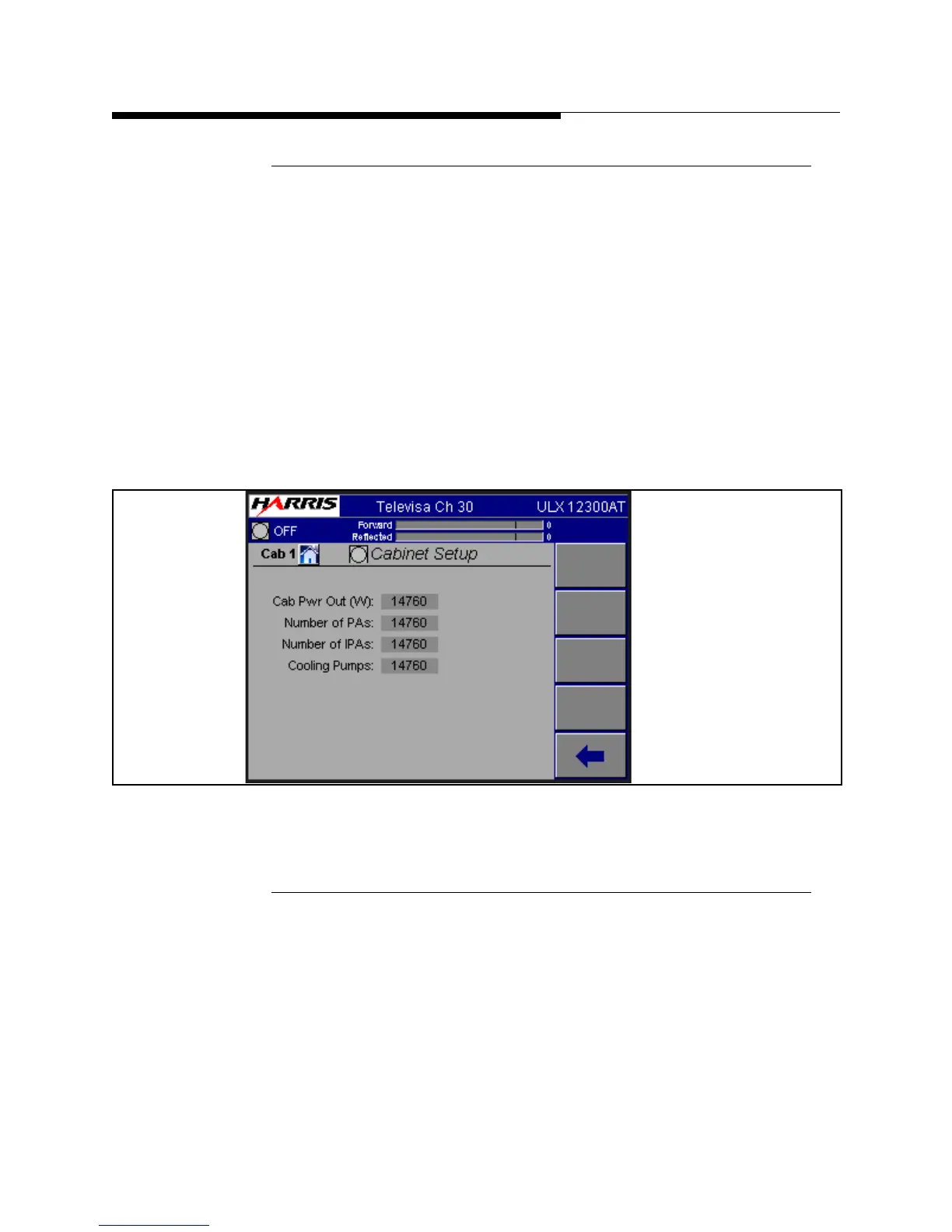

Figure 3-23 Cabinet Setup Screen
3.9.3.4 System and Cabinet Power Calibrate
See "5.8 Power Calibrations" on page 5-15 in Section 5 of this manual for the procedure
that utilizes these screens.
