10/6/10 888-2629-200 3-19
WARNING: Disconnect primary power prior to servicing.
Section 3 Operation
Maxiva ULX COFDM Series
3.9 System Main Menu
If you press the System button on the GUI screen, it will take you to the
screen shown in Figure 3-14. The System Menu structure is shown in
Figure 3-26 on page 3-30.

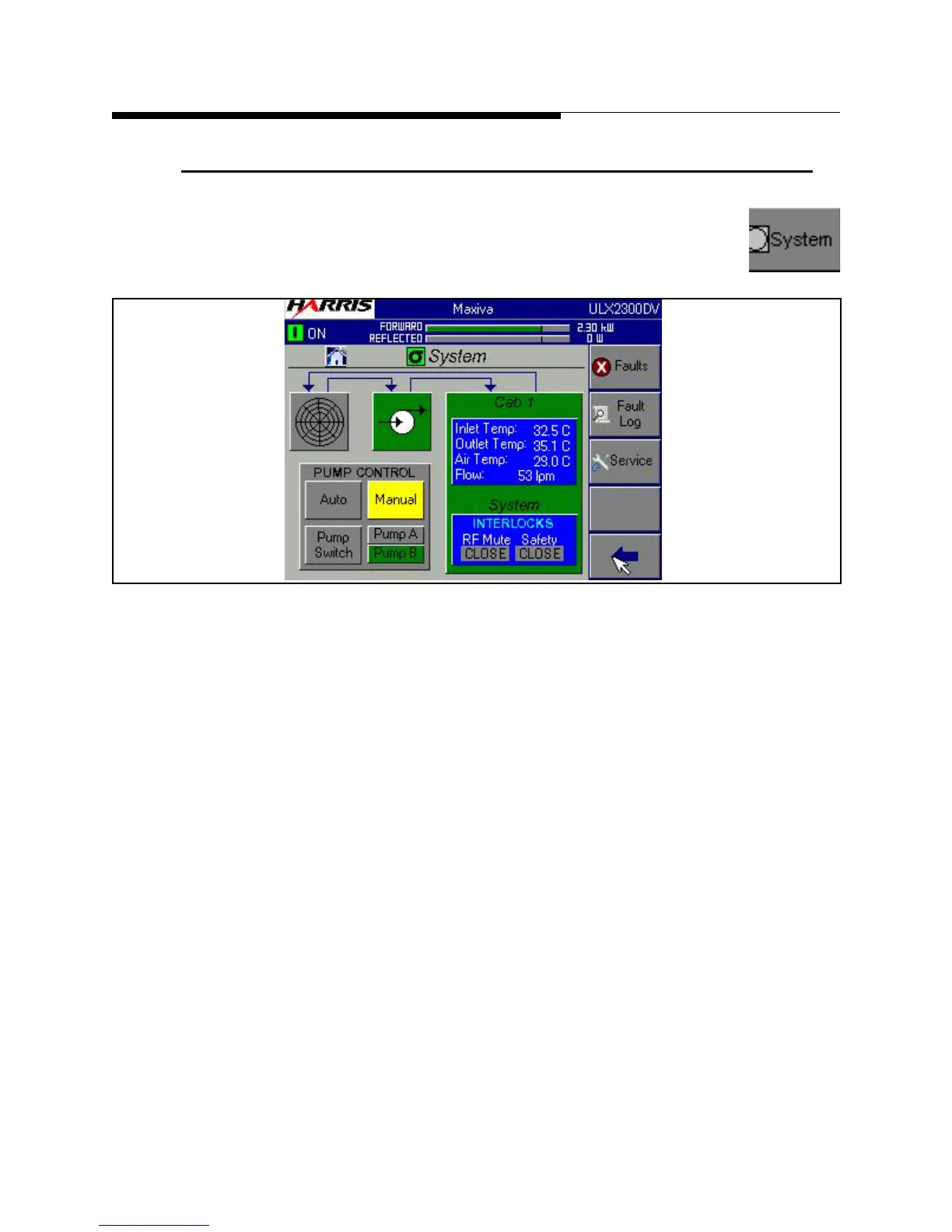

Figure 3-14 System Main Menu
This screen contains the System Main Menu which gives overall status information and
access to additional System screens. This includes:
a. CAB1 - Provides coolant temperatures, air temperatures and coolant flow (liters
per minute). The CAB1 block also provides the status of the RF Mute and Safety
Interlocks. Interlocks can read Open (red background) or Closed (gray back-
ground)
b. Pump Status - Pump icon has a green background color if no faults are present or
a red background color if faults are active. For more information on faults press
"Faults"
c. Pump Control - Pump A & Pump B for dual pump systems are indicated. This
panel would be grayed out (inactive) for single pump systems. The active pump
will have a green background. Pumps can be switched from this screen, by
pressing A or B only if the pump control panel switch is in the REMOTE mode.
Placing the pump control panel in LOCAL mode will disable pump selection on
the System GUI screen. For additional information on LOCAL operation and the
pump control panel see
"1.2.8.1 Cooling System Control Panel" on page 1-15.
AUTO or MANUAL can also be selected here. Selecting AUTO allows
automatic switchover in case of pump failure in dual pump systems. AUTO is the
normal operating mode if the system has dual pumps.
To Figure 3-15
To Figure 3-16
To Figure 3-17
To Figure 3-4
To Next Page
