10/6/10 888-2629-200 5-11
WARNING: Disconnect primary power prior to servicing.
Section 5 Maintenance and Alignments
Maxiva ULX COFDM Series
5.6 PA and IPA (driver) Pallet Replacement

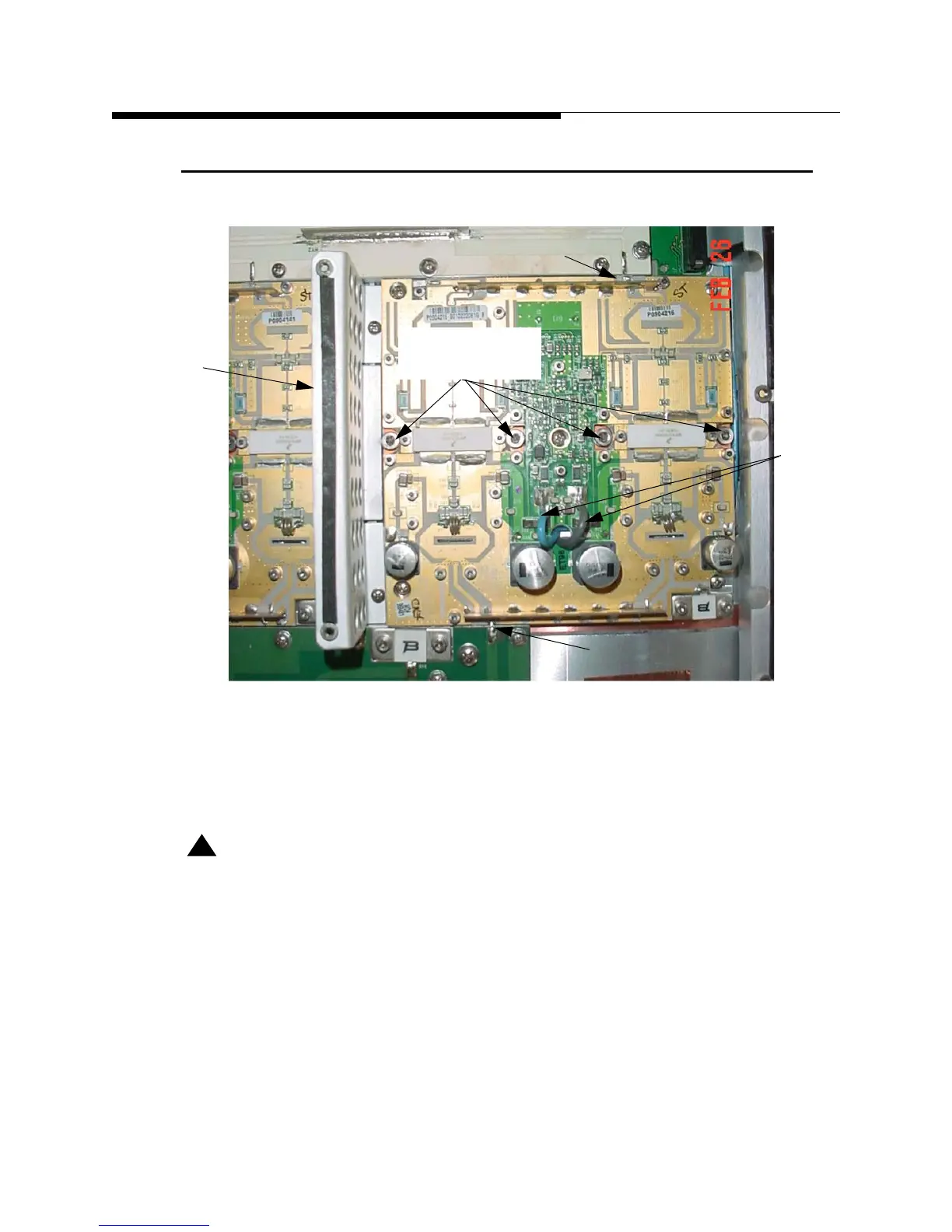

Figure 5-5 PA Module Pallet (one of four per module)
STEP 1 Turn off PA module breaker.
!
WARNING:
MODULE MAY BE HOT. ALLOW THE MODULE TO COOL BEFORE REMOVAL.
STEP 2 Wait 30 seconds for the module to cool.
STEP 3 Unscrew retaining screws and remove PA module.
STEP 4 Remove PA module cover.
STEP 5 Remove four (4) center pallet hold down screws (Allen head).
STEP 6 Remove five (5) additional pallet hold down screws (Phillips head).
Allen Screws
(torque)
Jumper
Jumper
Blue &
Gray Wires
Support
