10/6/10 888-2629-200 3-7
WARNING: Disconnect primary power prior to servicing.
Section 3 Operation
Maxiva ULX COFDM Series
3.4 GUI Home Screen
The HOME screen shown in Figure 3-3 is the primary operator screen and the default
screen after boot up. The HOME screen contains the most important general operator
information such as:
a. Cooling status
b. Power supply status
c. Drive chain selection (pre-driver and IPA status)
d. Amplifier status

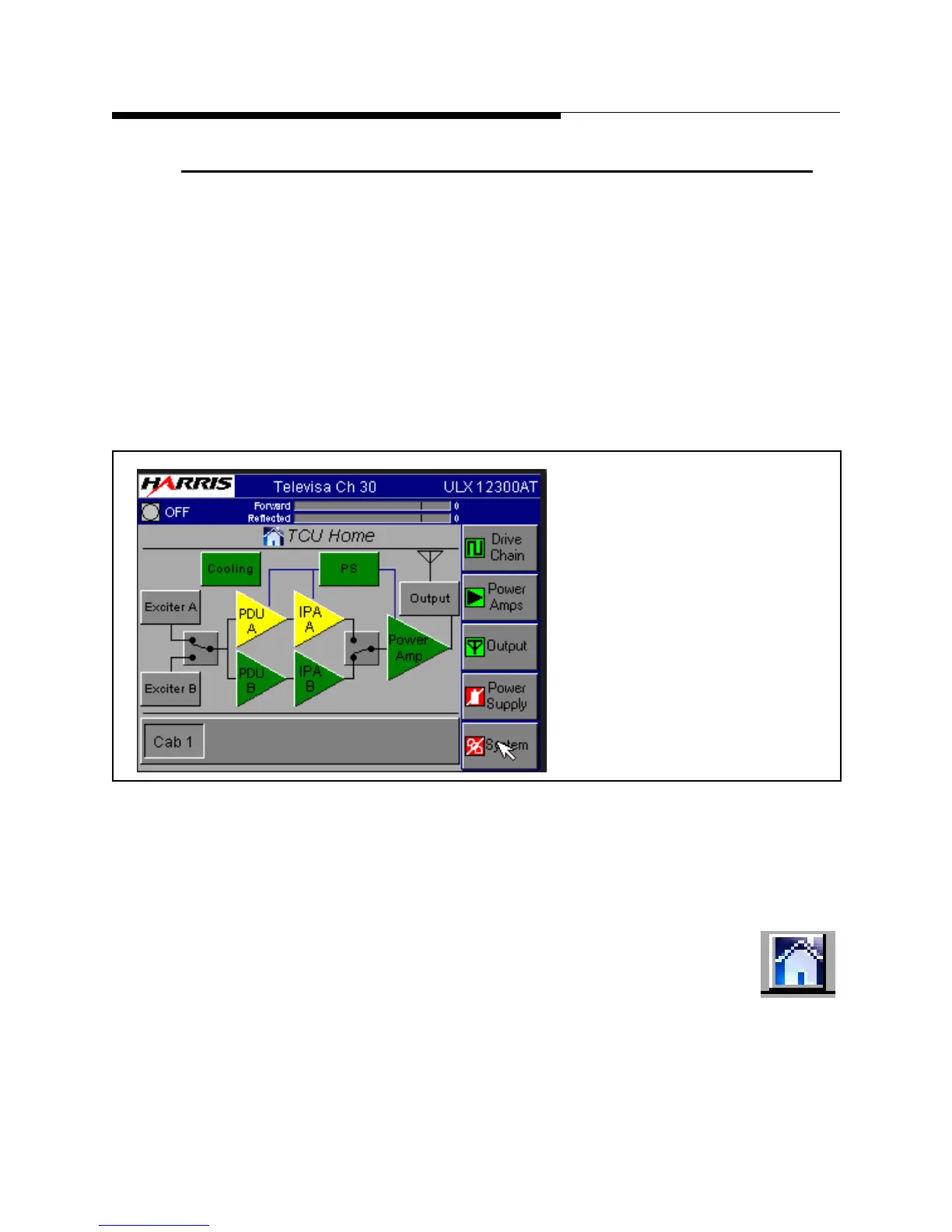

Figure 3-4 ULX-8700** Home Screen
It also has the global status and operation information at the top of the screen which
shows the transmitter status, power output and any faults present.
The HOME button (shown to the right) is a software button located in the
upper left quadrant of
all 5 main menu screens for quick navigation to the
HOME screen. If a submenu screen is displayed on the GUI (see Figure 3-
4), the lower right-hand button will typically be the BACK (arrow) button;
use this back arrow button to go back up a level.
To Figure 3-5 on page 3-9
To Figure 3-8 on page 3-13
To Figure 3-10 on page 3-15
To Figure 3-12 on page 3-17
To Figure 3-14 on page 3-19
