A-8 888-2629-200 10/6/10
WARNING: Disconnect primary power prior to servicing.
Maxiva ULX COFDM Series

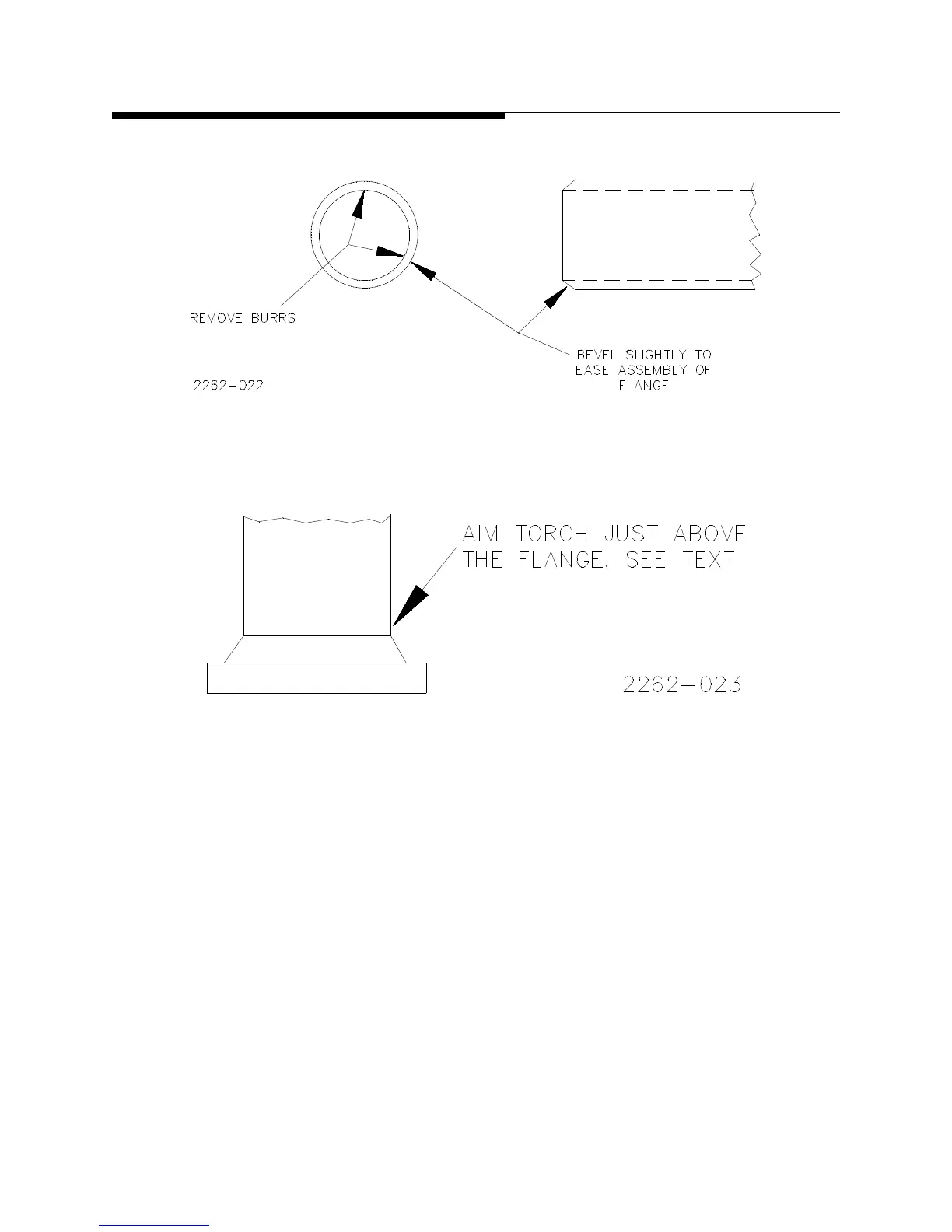

Figure A-8 Bevel Cut End and Remove Burs
Figure A-9 Torch Aiming Location
A.5 Cleaning The Soldered Joint
Vigorous scrubbing with a wire brush and steel wool will remove torch black with good
results. In addition, cleaning with an acid solution can make this job easier. The
procedure is as follows:
Warning
MURIATIC ACID USED IN THE FOLLOWING PROCEDURE IS HAZARDOUS. USE
EYE AND SKIN PROTECTION WHEN HANDLING OR MIXING. KEEP AN EXTRA BOX
OF BAKING SODA HANDY FOR FIRST AID OR TO NEUTRALIZE SPILLS. PERFORM
THE PROCEDURES OUTDOORS IF POSSIBLE. IF THE WORK MUST BE DONE
INDOORS, WORK ONLY IN WELL VENTILATED AREA.
