8.2.2 MX840B status display
The front panel of the universal amplifier has a system
LED and 8 connection LEDs. The system LED indicates
the status of the device, the connection LEDs the states
of the individual connections.
Connection LED
System
LED

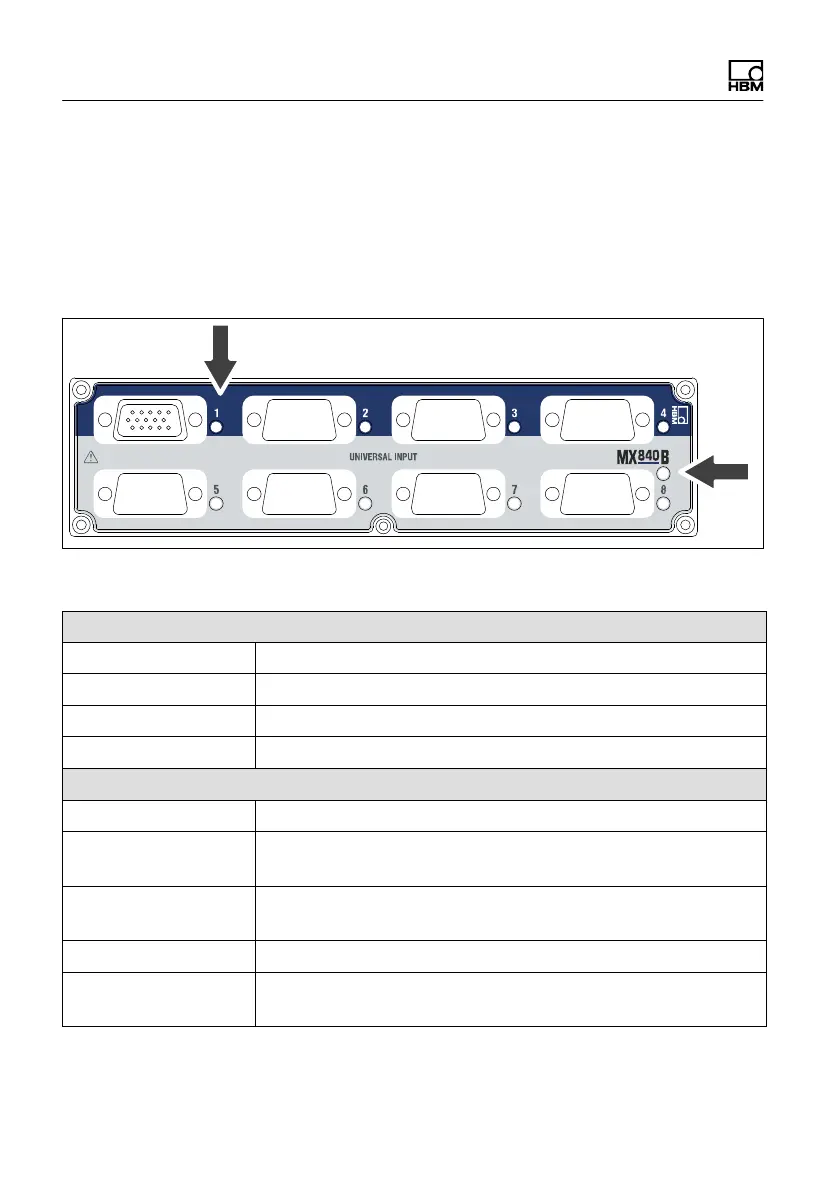

Fig. 8.3 MX840B front view
System LED
Green Error-free operation
Orange System is not ready, boot procedure running
Flashing orange Download active, system is not ready
Red Error
Connection LEDs
All LEDs are orange Boot procedure running (system is not ready)
All LEDs are flashing
orange
Firmware download active (system is not ready)
Orange Connection newly assigned, transducer identification running
(calibration)
Green Error-free operation
Flashing green (5s),
then green
TEDS data being read in
