6.3 Mounting the housing with CASEFIT
A CASEFIT fitting panel can be used for flexible mount
ing of QuantumX series modules. The modules can be
fastened in place with belt tensioners or case clips
(CASECLIP).
Lugs for additional
fastening with
tension belts
132
169.5
Ø 5.6
22
11.4
approx. 30
Dimensions in mm (1 mm = 0.03937 inches)

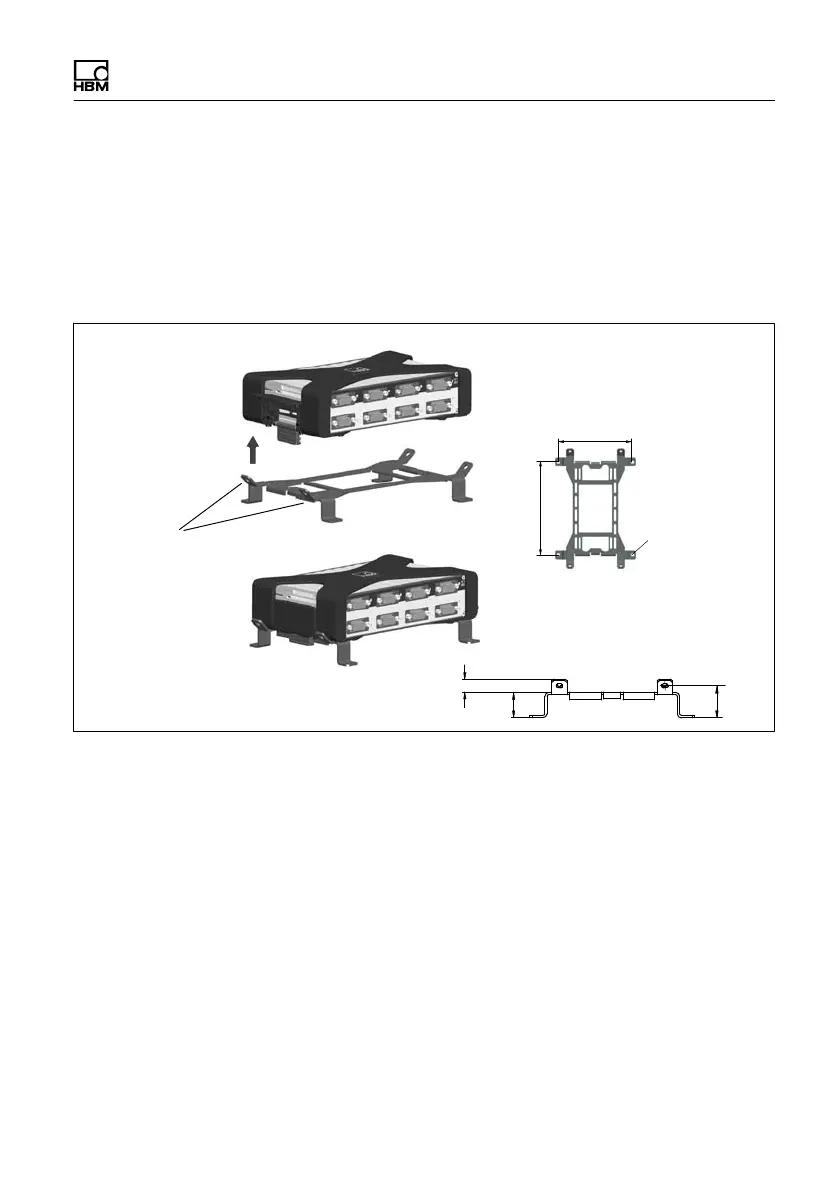

Fig. 6.10 Mounting with CASEFIT and CASECLIP
6.4 BPX001/BPX002 backplane
The use of a backplane such as BPX001 or BPX002
(RACK) allows up to 9 modules to be connected with
hardly any wiring.
The backplane also has two additional FireWire inter
faces for integrating distributed modules or for direct con
nection to a PC or data recorder. The IEEE1394b
FireWire interfaces are actively interconnected.
