HBM MX440B - Backplane BPX002

Mechanical
52 I3031-14.0 HBM: public Quantum
X
6.4.3 Backplane BPX002
470
462
214.5
448.5
220.9
32.75
65.5
98.25
131
165.3
0
146.05
482.6

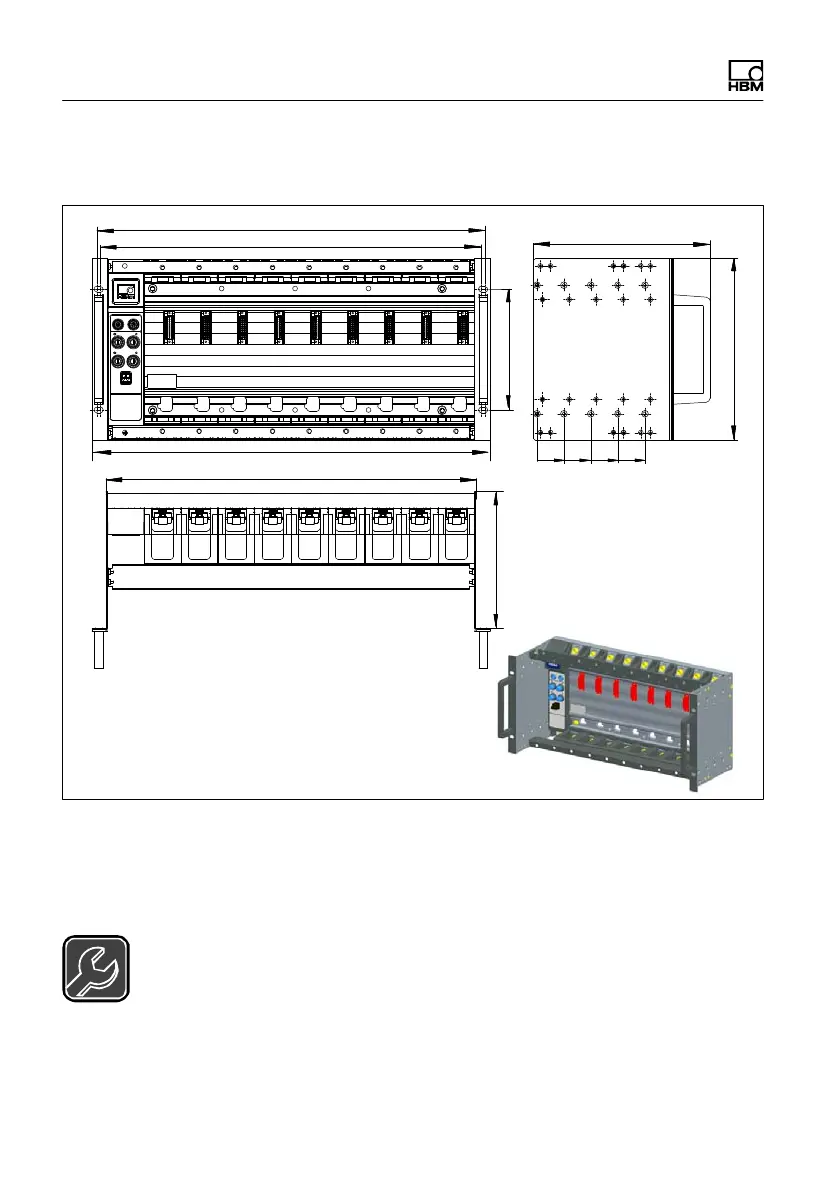

Fig. 6.14 Rackmontage BPX002
6.4.4 Mounting the modules
Tools
We recommend a T-handle Allen wrench 4x150 (4 mm
across flats, length 150 mm).
