6.4.5 Backplane with Ethernet connection
A central CX27B gateway enables a BPX backplane to
be connected. Maximum sampling rate: 400 kS/s.
The IEEE1394b FireWire sockets on the backplane allow
integration of distributed modules into the system.
The individual modules can also be connected directly
via Ethernet on the back, with maximum sampling rate.
In this case, no gateway is required.
BPX001 + CX27

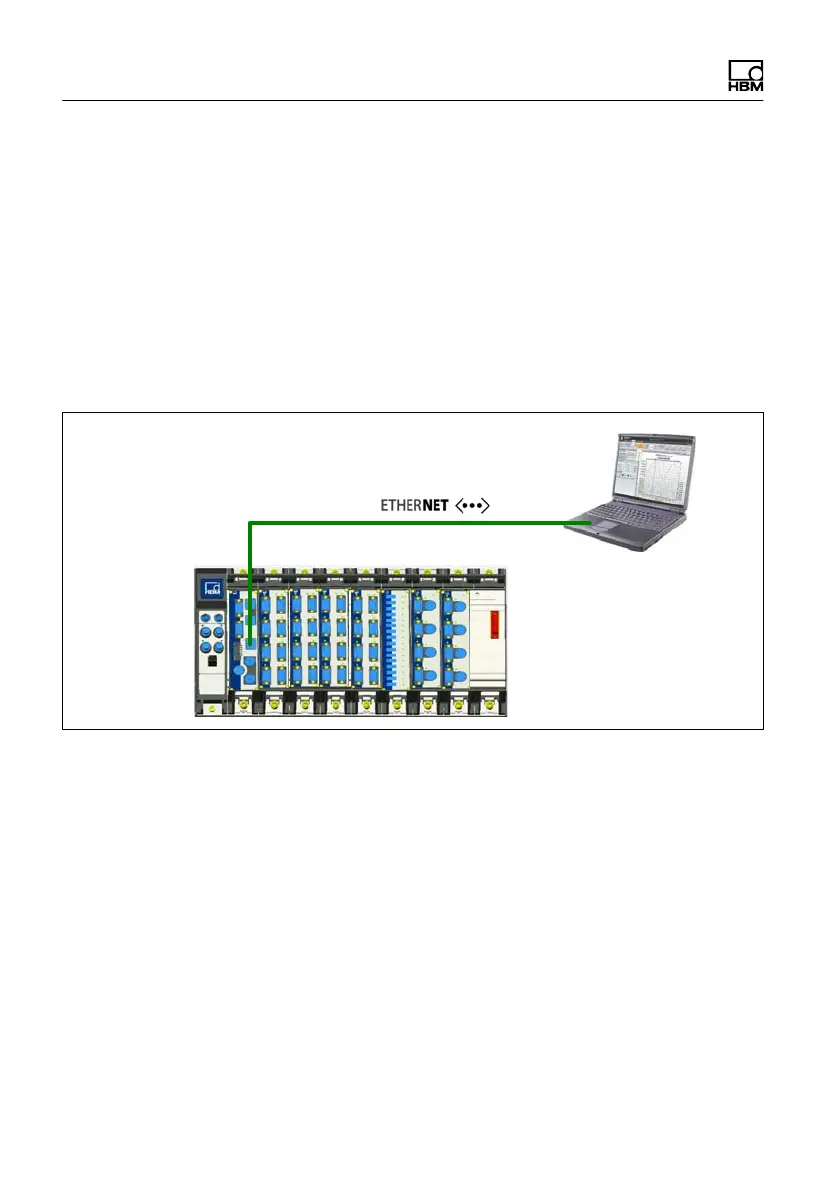

Fig. 6.19 Connecting a backplane via Ethernet
