HBM MX440B - Connection

Mechanical
Quantum
X
I3031-14.0 HBM: public 49
6.4.1 Connection
X1 / X2
IEEE1394b FireWire
(PC, external modules)
Fuses with
control LEDs
4 x 4 A/T
Supply voltage
18 V ... 30 V DC
5 A max.
Grounding
VG strip
Module
connection
+
-

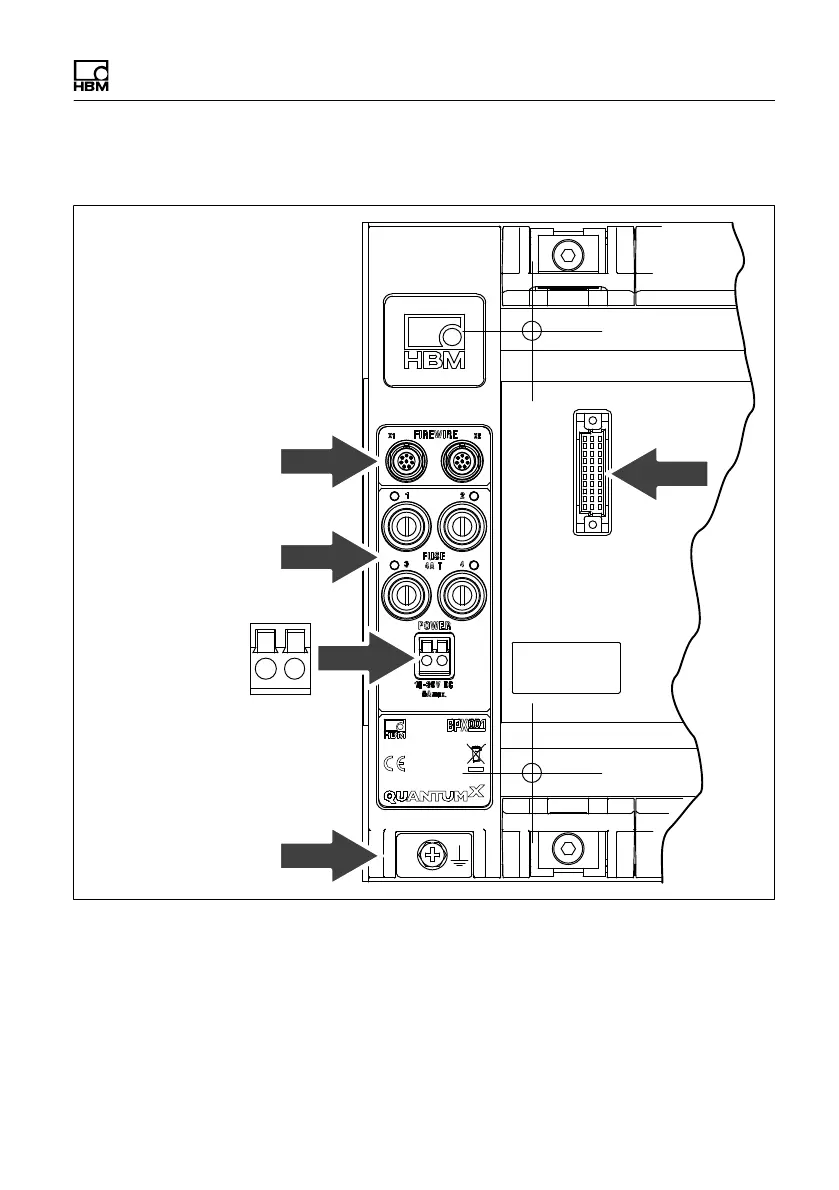

Fig. 6.12 BPX001 connections
