Modules and transducers
Quantum
X
I3031-14.0 HBM: public 109
ConnectorPin
12 Active sensor supply 5 ... 24 V (+)
13 Free
14 Free
15 Digital output
8.5.2 MX430B status display
Connection LED
System
LED

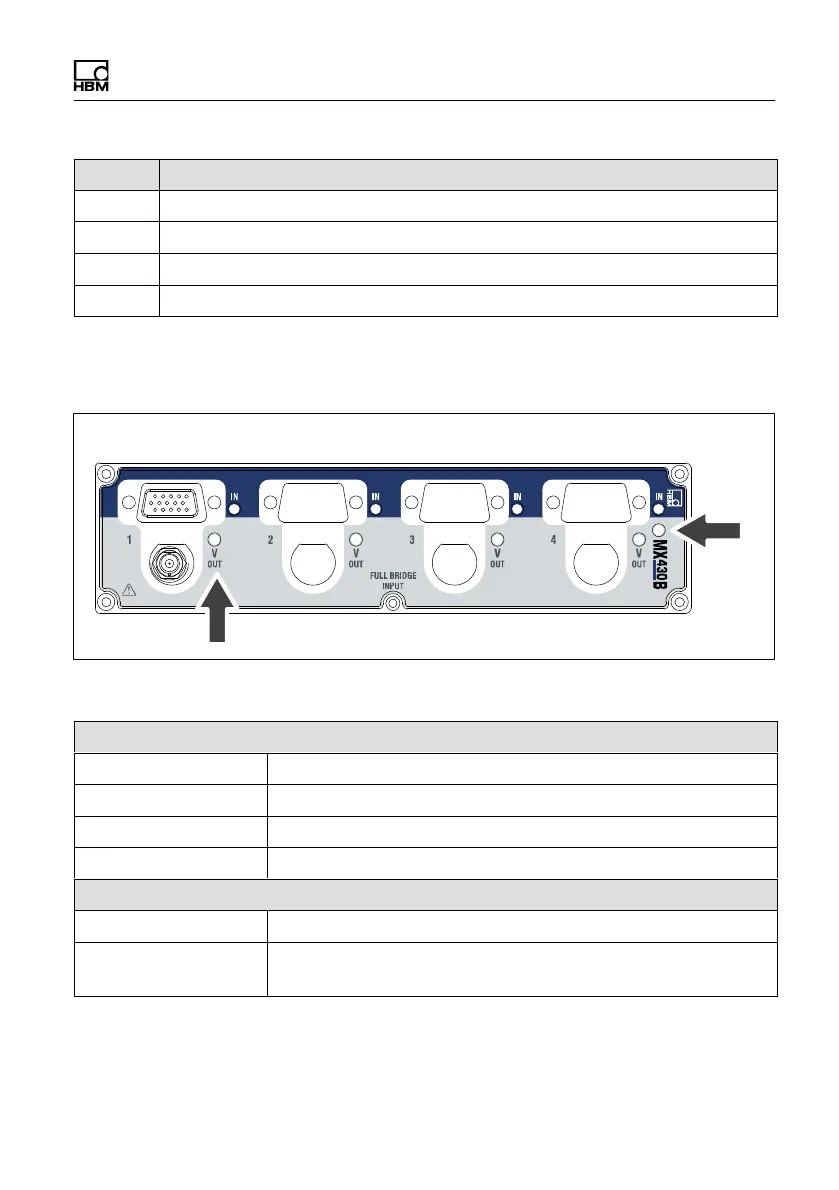

Fig. 8.8 MX430B front view
System LED
Green Error-free operation
Orange System is not ready, boot procedure running
Flashing orange Download active, system is not ready
Red Error
Connection LEDs
All LEDs are orange Boot procedure running (system is not ready)
All LEDs are flashing
orange
Firmware download active (system is not ready)
