HBM MX440B - CAN bus

Transducer connection
Quantum
X
I3031-14.0 HBM: public 173

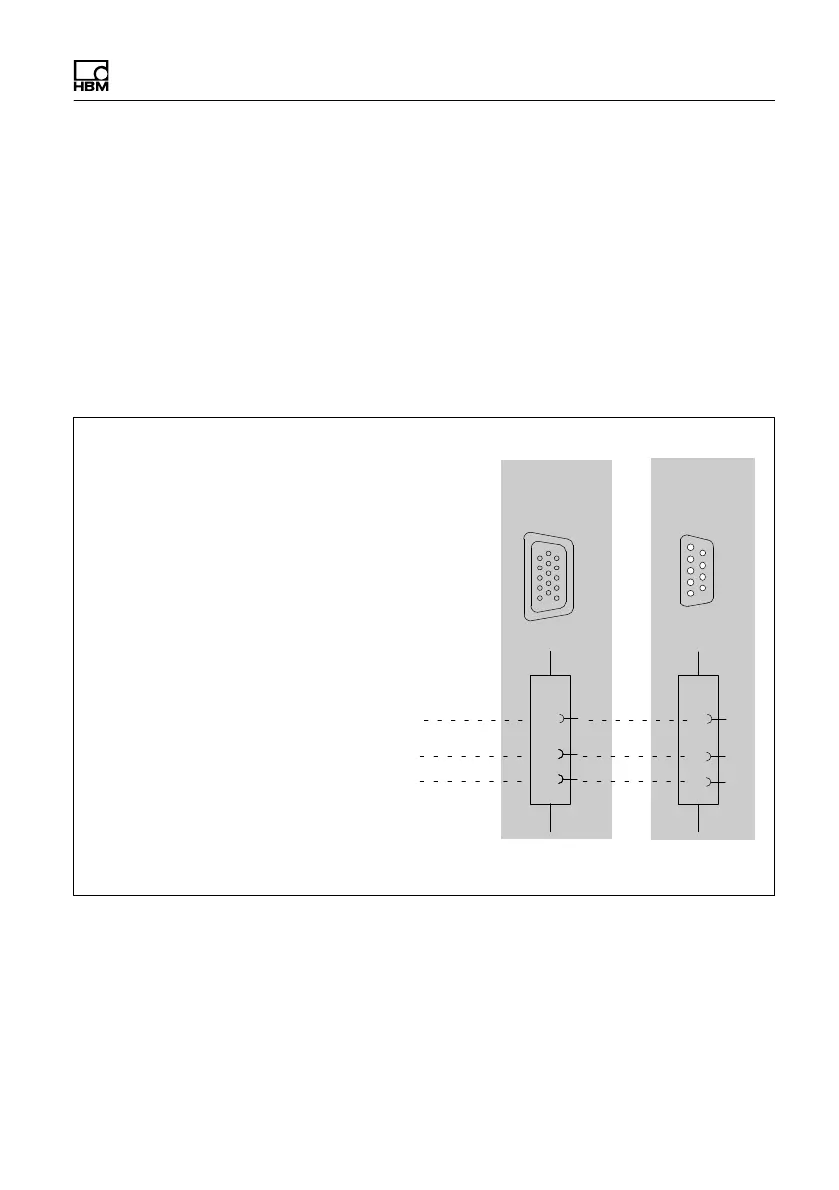

9.32 CAN bus
Receiving CAN signals:
MX471B, MX840B (channel 1)
Transmitting CAN signals:
MX471B, MX840B (channel 1, measurement signals
within the module only)
Receiving CCP or XCPoverCAN signals:
MX471B
7
8
CAN High
CAN Low
1
5
6
10
11
15
Adjustable sensor supply: Pin12: 5 V ... 24 V
(at MX840B) Pin 11: 0 V
MX471B
Channel 1
Sub-HD 15-pin
MX840B
7
2
1
5
6
Sub-D 9-pin
9
6
6
CAN-GND
