MX238B connectable transducers
Transducer type Connection sockets See page
SG full bridge 1 ... 4 138
8.6.1 MX238B pin assignment
So that insertion or removal of a transducer connection
can be unmistakably identified, Pin 4 and Pin 9 in the
connector plug must be bridged! If this bridge is missing,
no measurement values will be recorded at the connec
tion!
1
4
5
11
15
Bridge

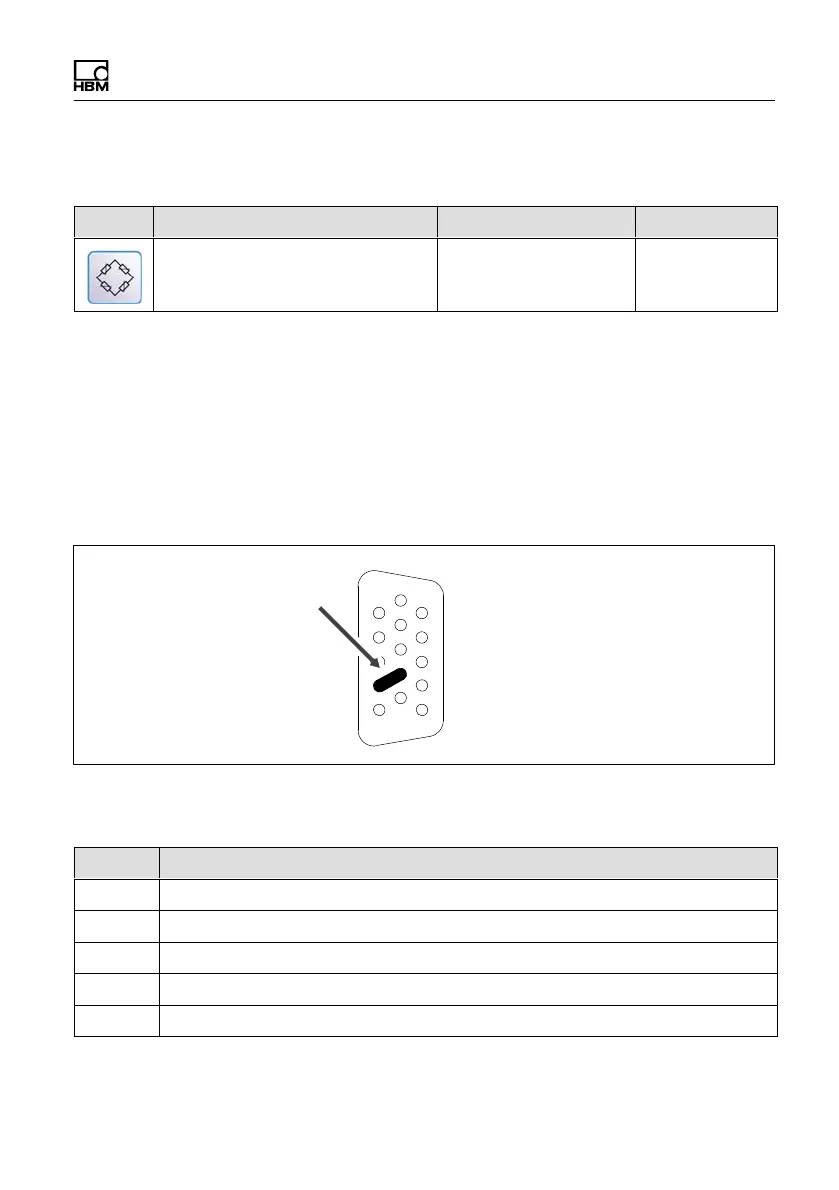

Fig. 8.9 Pin arrangement of connector plug, view from the
solder side
Pin Connector
1 TEDS (+)
2 Bridge excitation voltage (-)
3 Bridge excitation voltage (+)
4 Always connect with Pin 9! (Plug-in detection)
5 Measurement signal (+)
