HBM MX440B - System Layout with Several Backplanes

Mechanical
58 I3031-14.0 HBM: public Quantum
X
6.4.7 System layout with several backplanes
Multiple BPX backplanes can be synchronized via CX27
gateway modules. Connection of CX27 to CX27 via
KAB2722 or 5, via front IEEE1394b FireWire connec
tion.

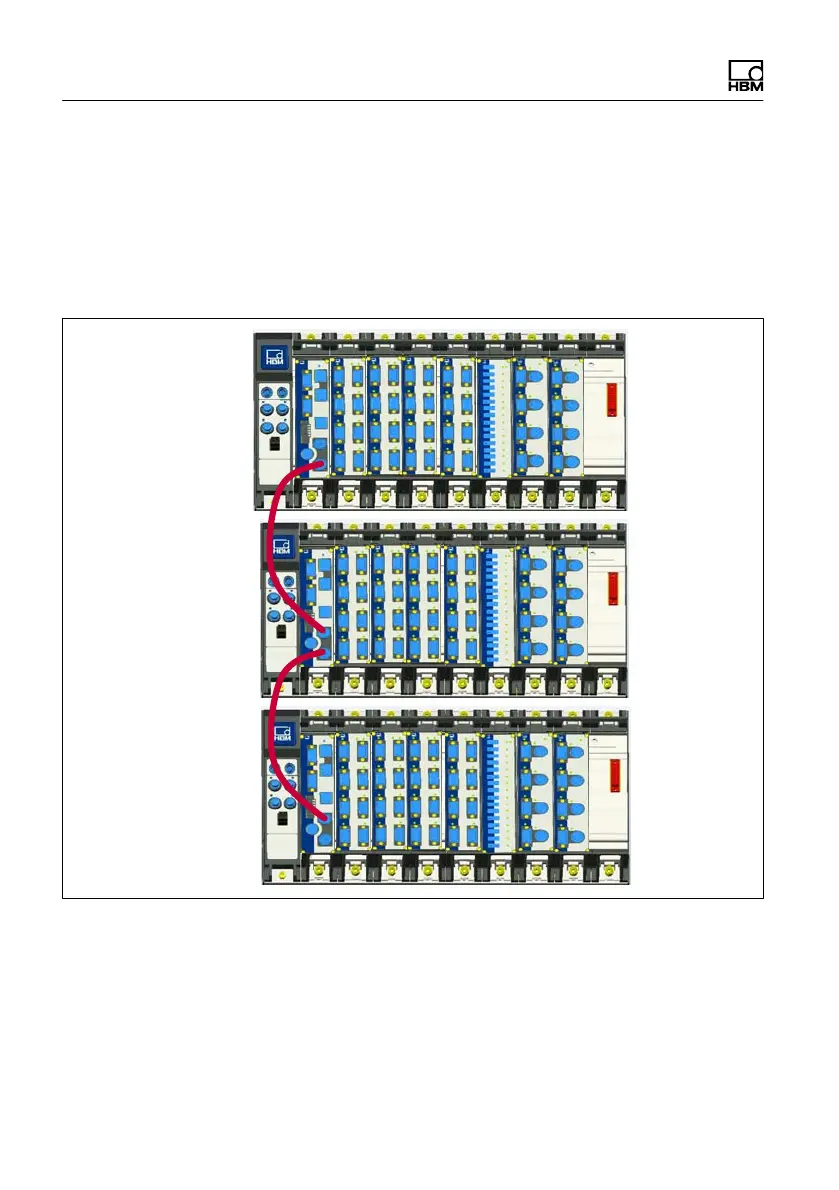

Fig. 6.21 Synchronizing multiple backplanes
