Modules and transducers
114 I3031-14.0 HBM: public Quantum
X
measuring channels are electrically isolated from one
another and from the power supply. When using the ad
justable transducer excitation, electrical isolation from the
supply voltage of the amplifier is not required.

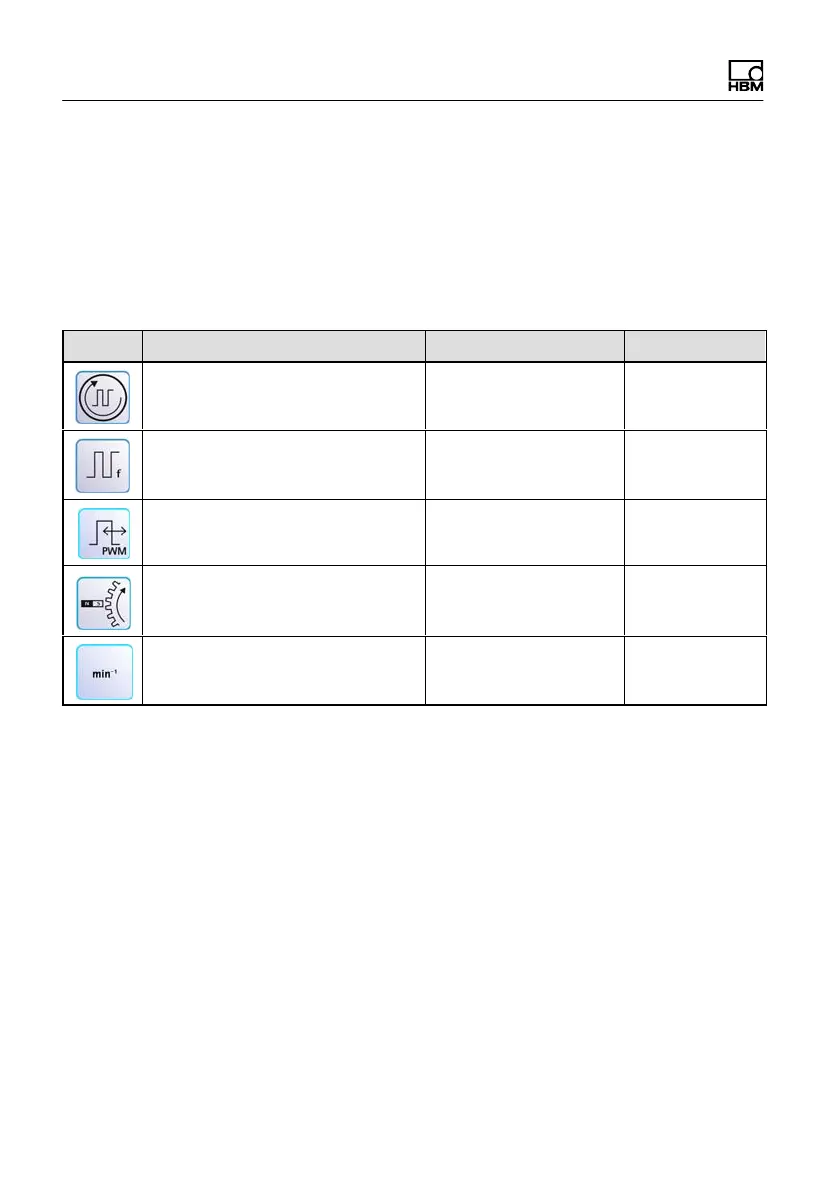

MX460B connectable transducers
Transducer type Connection sockets See page
Torque/speed (HBM torque
transducer)
1 ... 4 162, 170
Frequency measurement, pulse
counting
1 ... 4 from 161
Pulse width, pulse duration,
period duration (PWM)
1 ... 4 172
Passive inductive encoder 1 ... 4 169
Incremental encoder 1 ... 4 from 161
8.7.1 MX460B pin assignment
So that insertion or removal of a transducer connection
can be unmistakably identified, Pin 4 and Pin 9 in the
connector plug must be bridged! If this bridge is missing,
no measurement values will be recorded at the connec
tion!
