9.7 Adapter quarter bridge, SG
For connecting single quarter-bridge strain gauges in
three-wire configuration, an adapter can be plugged onto
the following modules:
MX840B, MX440B, MX430B, MX410B
Available adapters
SG with 120 ohms: order number: SCM-SG120
SG with 350 ohms: order number: SCM-SG350
21
1’
SG 120 / 350
2
1'1

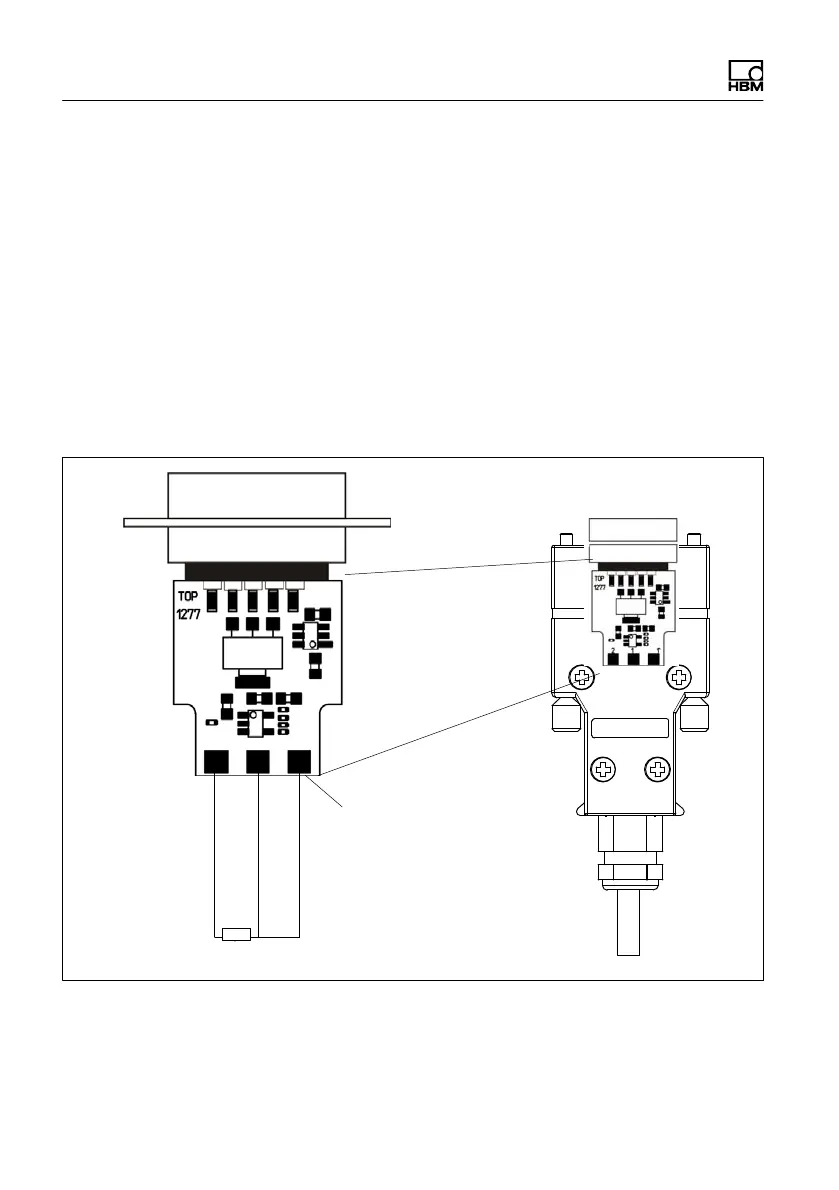

Solder pads
For technical details see the leaflet entitled QuantumX /
SCM-SG120/350.
