Modules and transducers
106 I3031-14.0 HBM: public Quantum
X
8.4.2 MX410B status display
Connection LED
Analog output LED
System
LED

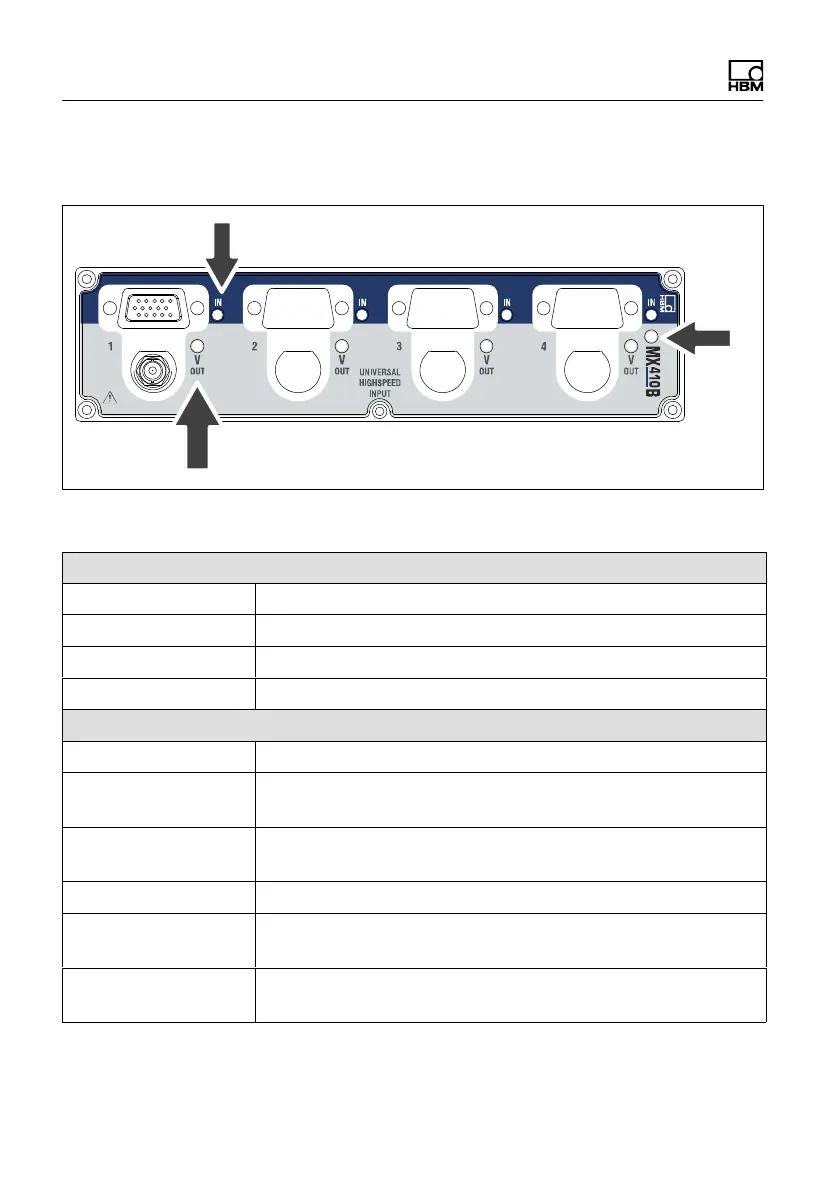

Fig. 8.6 MX410B front view
System LED
Green Error-free operation
Orange System is not ready, boot procedure running
Flashing orange Download active, system is not ready
Red Error
Connection LEDs
All LEDs are orange Boot procedure running (system is not ready)
All LEDs are flashing
orange
Firmware download active (system is not ready)
Orange Connection newly assigned, transducer identification running
(calibration)
Green Error-free operation
Flashing green (5s),
then green
TEDS data being read in
Flashing orange (5 s),
then green
Manual configuration ongoing (ignore TEDS)
