Connecting individual QuantumX modules
78 I3031-14.0 HBM: public Quantum
X
Notice
Different voltage sources must have the same reference
potential and should be within the same voltage range.
Drops in voltage will occur due to line resistances and
internal protective circuits. The last module of the chain
should therefore receive a considerably lower supply
voltage.
Make certain that at least 10 V is still applied to the last
module.

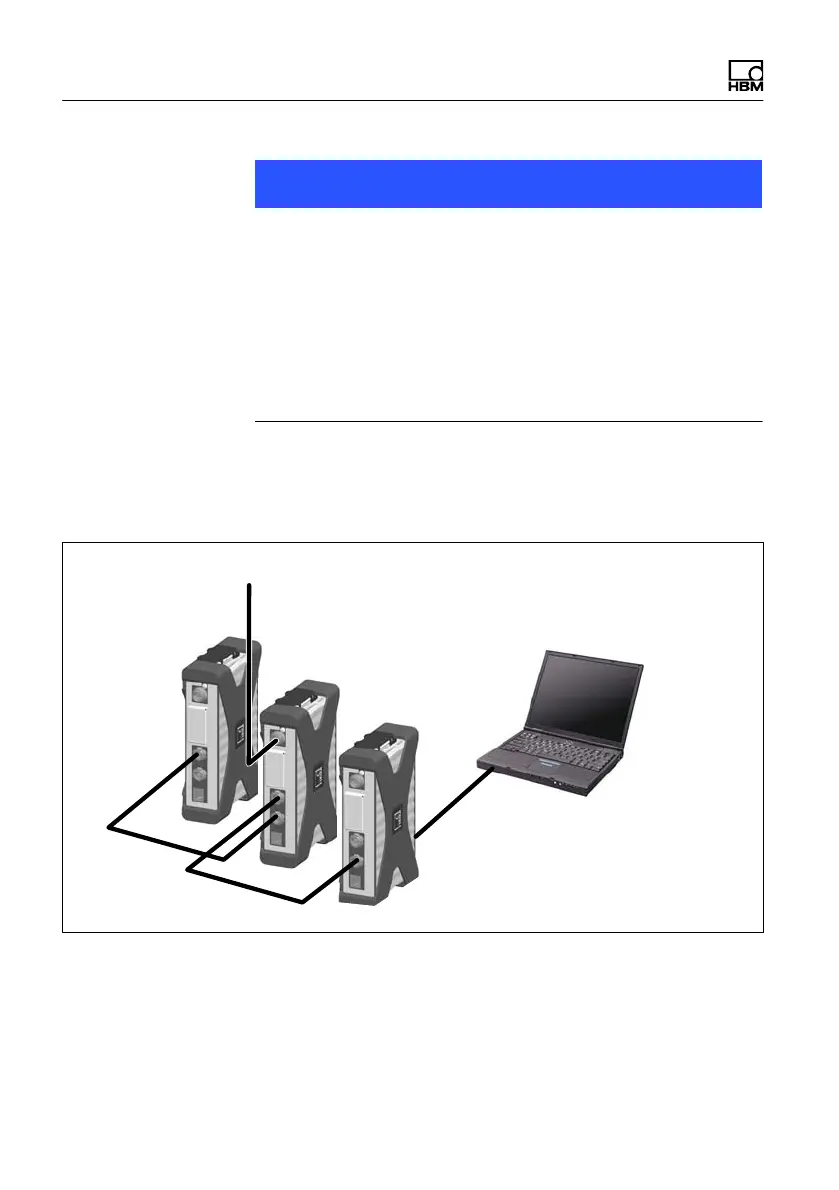

7.2.9 Layout with data recorder CX22B‐W
FireWire connection
10 V ... 30 V DC (NTX001, etc.)
Connection via Ethernet cable or
wireless (WLAN)
CX22B-W
Fig. 7.8 Layout with CX22‐W
