HBM MX440B - Multiple Firewire Connection

Connecting individual QuantumX modules
Quantum
X
I3031-14.0 HBM: public 77
7.2.8 Multiple FireWire connection
1-Kab293-5
5 m connection cable
10 V ... 30 V DC
(NTX001, etc.)
FireWire
connection
1-KAB272-02
0.2 m connection cable
10 V ... 30 V DC
(NTX001, etc.)
1-KAB272-2/5
2 or 5 m connection cable
X101
X102

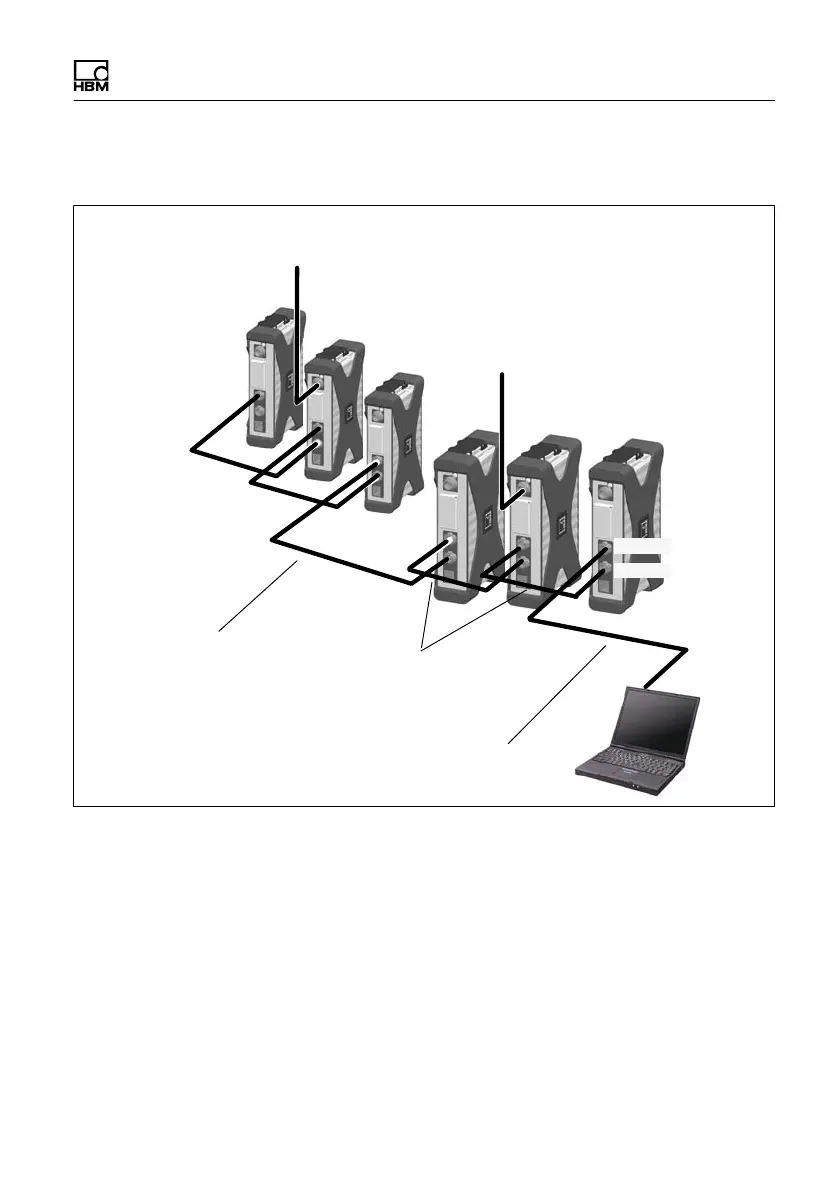

Fig. 7.7 Example of multiple connection via FireWire with
synchronization
Data is transferred, modules are synchronized in timing
and voltage is supplied via the FireWire connections. You
can connect a maximum of 12 modules in series with
each other.
