HBM MX440B - Measurement of Rotational Speed, Crankshaft Sensor (Digital, TTL)

Transducer connection
170 I3031-14.0 HBM: public Quantum
X
9.29 Measurement of rotational speed,
Crankshaft sensor (digital, TTL)
Supported by the following modules: MX840B, MX440B,
MX460B
9
4
Hsg.
Cable color code: wh= white; bk= black; bu= blue; rd= red; ye = yellow; gn= green; gy= gray
10
5
6
5 V
3.5 V
1.5 V
Thresholds
Thresholds
f
1

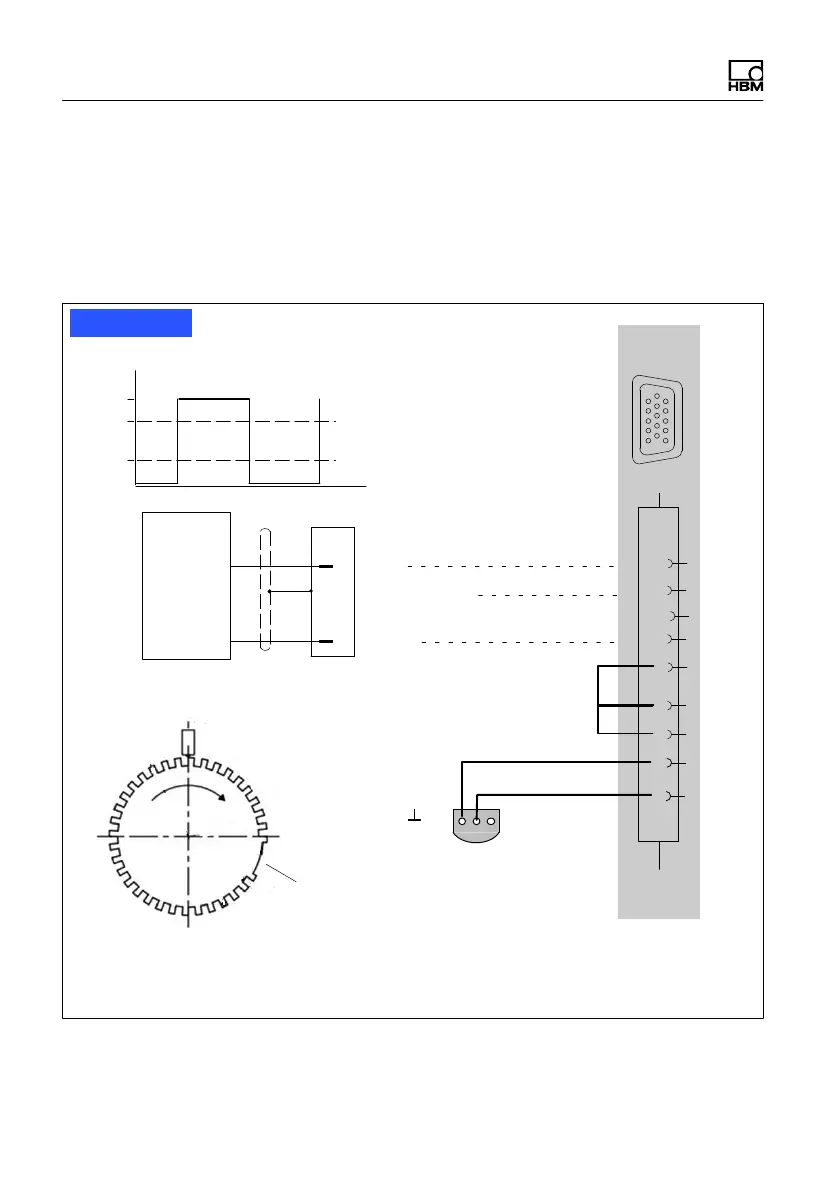

Signal single-pole, schematic diagram
0 V
Hsg. = Housing
1
5
6
10
11
15
2 Data
1
Adjustable sensor supply: Pin12: 5 V ... 24 V
Pin 11: 0 V
1-wire EEPROM (optional)
view from below
15
Maximum input voltage: 5 V to ground
NOTE
Ground
Cable shield
f
1
(+)
6
1
1
2
3
3 No function
Gap
Crankshaft sensor / OT sensor
Example for a crankshaft wheel with gap
