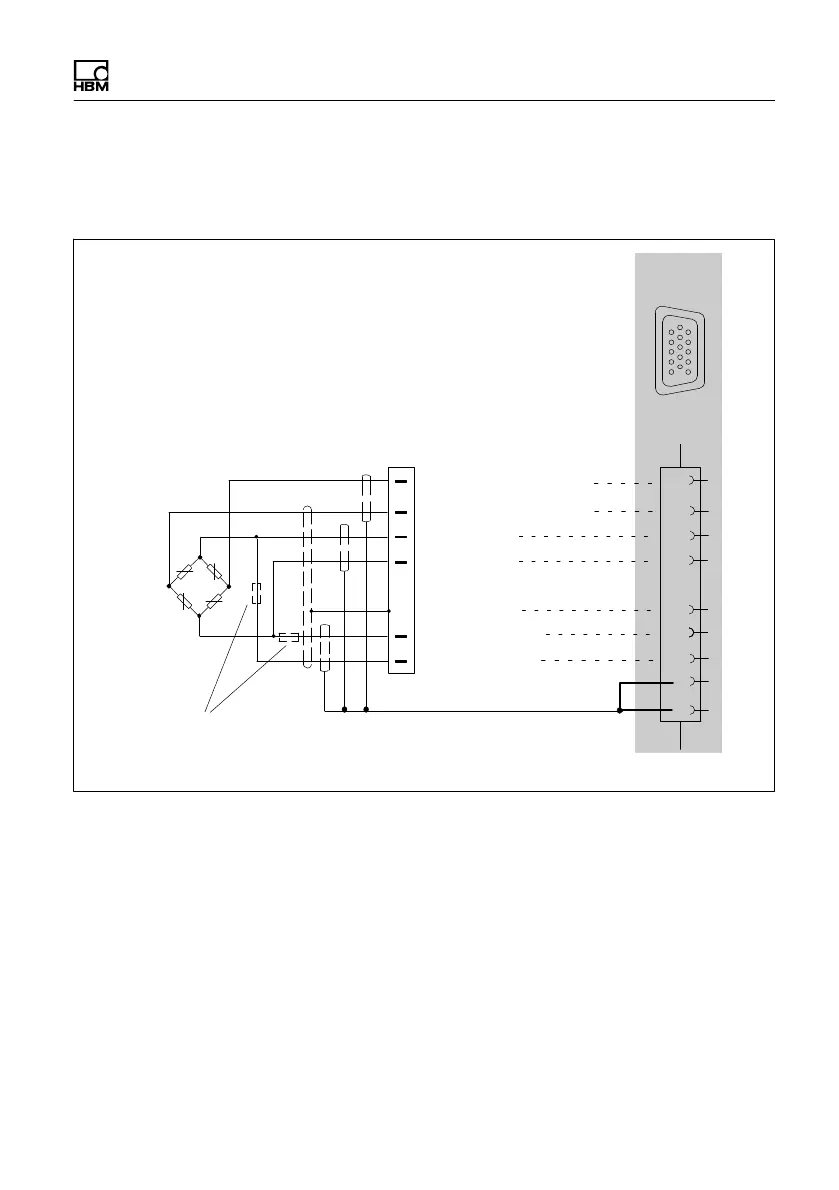

9.8 Connecting transducers with double
shield technique
5
8
10
7
Measurement signal (+)
Excitation (+)
Sense lead (-)
Sense lead (+)
Excitation (-)
Measurement signal (-)
Cable shield
2
3
Hsg.
4
9
1
2
4
3
RB / 2 (to transducer)
Hsg. = Housing
1
5
6
10
11
15
For amplifiers MX840B, MX440A and MX410B, we re
commend this connection technique for very small meas
urement ranges, particularly in environments subject to
interference and when using long cables.
This applies for all bridge connections.
With cable lengths >50 m, a resistor with half the value of
the bridge resistance (RB/2) must be connected in each
sense lead of the transducer.
