7.2 Connection to host PC or data
recorder
7.2.1 Single Ethernet connection
TCP/IP, 100 Mbps
10 V ... 30 V DC
1-NTX001 or
1-KAB271-3
X100
X104
KAB293-2

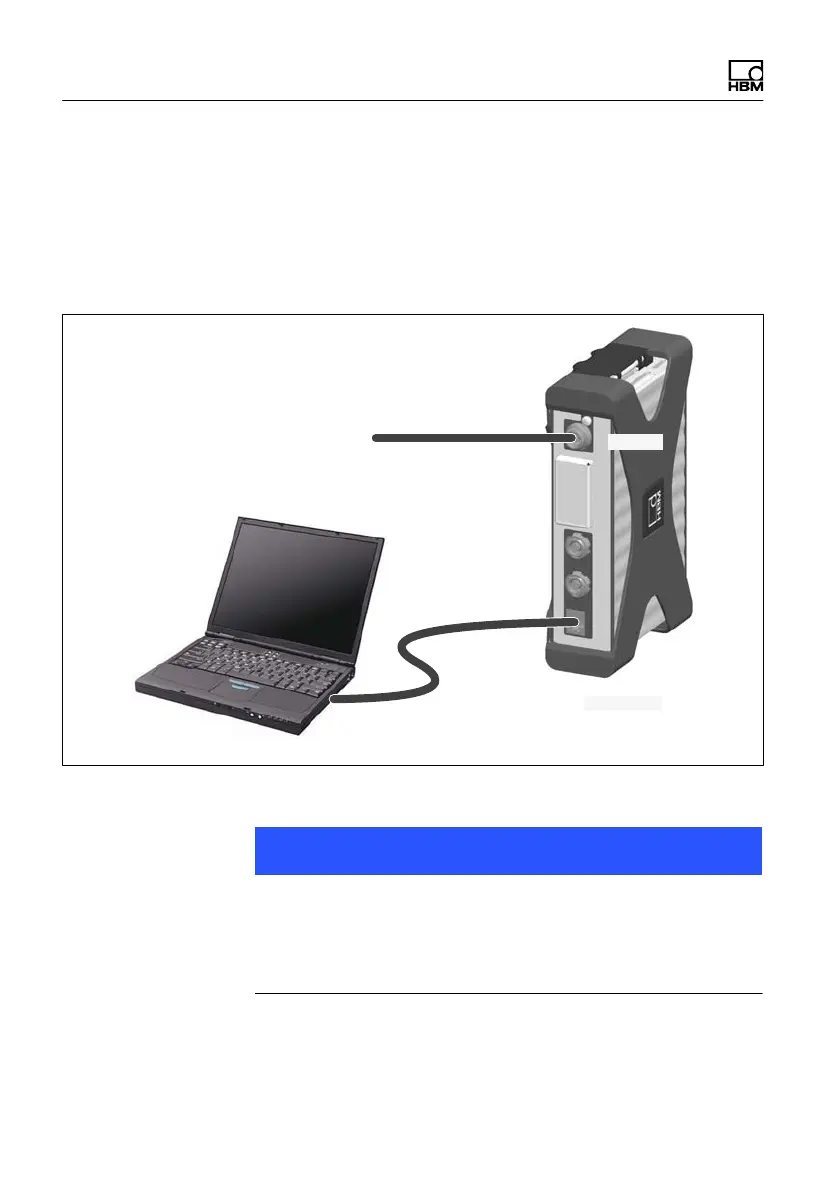

Fig. 7.2 Single Ethernet connection
Notice
You must use an Ethernet crossover cable with older
computers. Newer PCs/laptops have Ethernet interfaces
with autocrossing function. You can also use Ethernet
patch cables for this purpose.
