Modules and transducers
104 I3031-14.0 HBM: public Quantum
X
See pageConnection socketsTransducer type
High-voltage via adapter (300 V
CAT II)
1 ... 4 153
Electrical current 1 ... 4 154
Current-fed piezoelectric trans
ducer (IEPE, ICP®)
1 ... 4 148
Piezoresistive transducer 1 ... 4 140
8.4.1 MX410B pin assignment
So that insertion or removal of a transducer connection
can be unmistakably identified, Pin 4 and Pin 9 in the
connector plug must be bridged! If this bridge is missing,
no measurement values will be recorded at the connec
tion!
1
4
5
11
15
Bridge

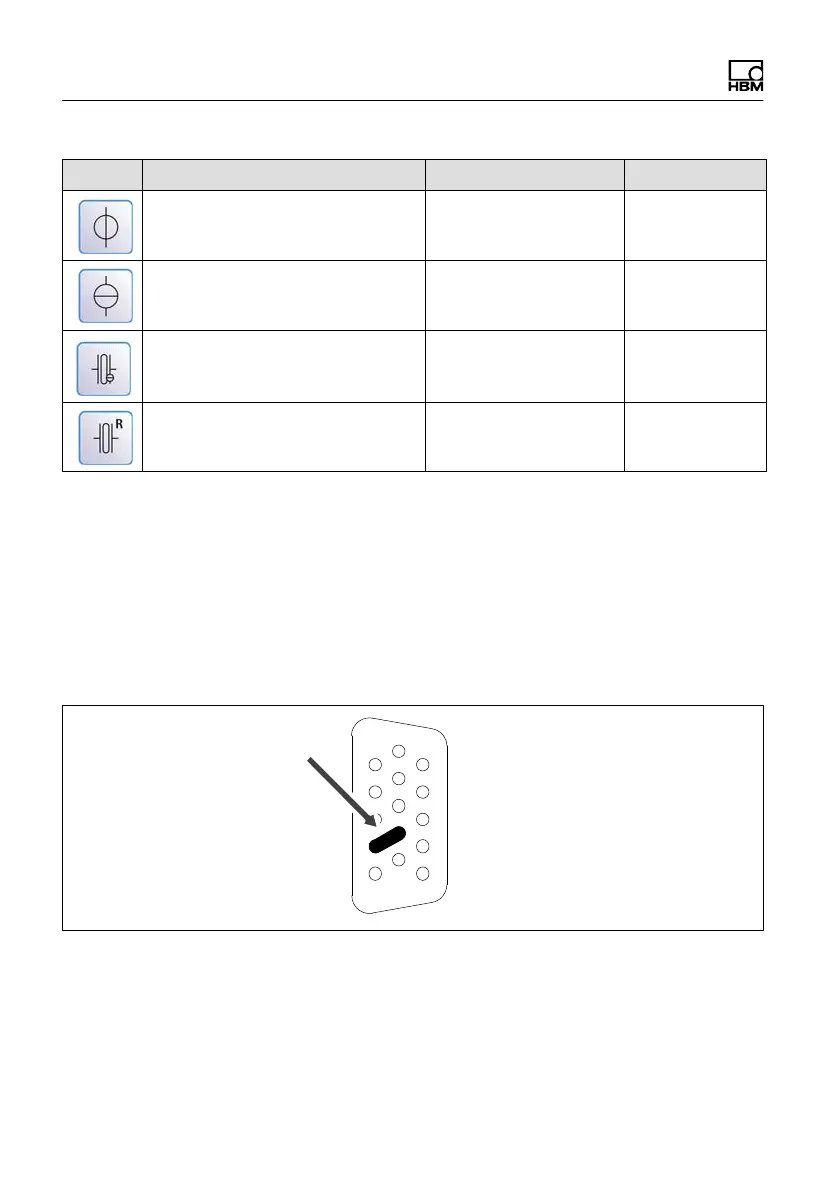

Fig. 8.5 Pin arrangement of connector plug, view from the
solder side
