Accessories

Quantum

I3031-14.0 HBM: public 219

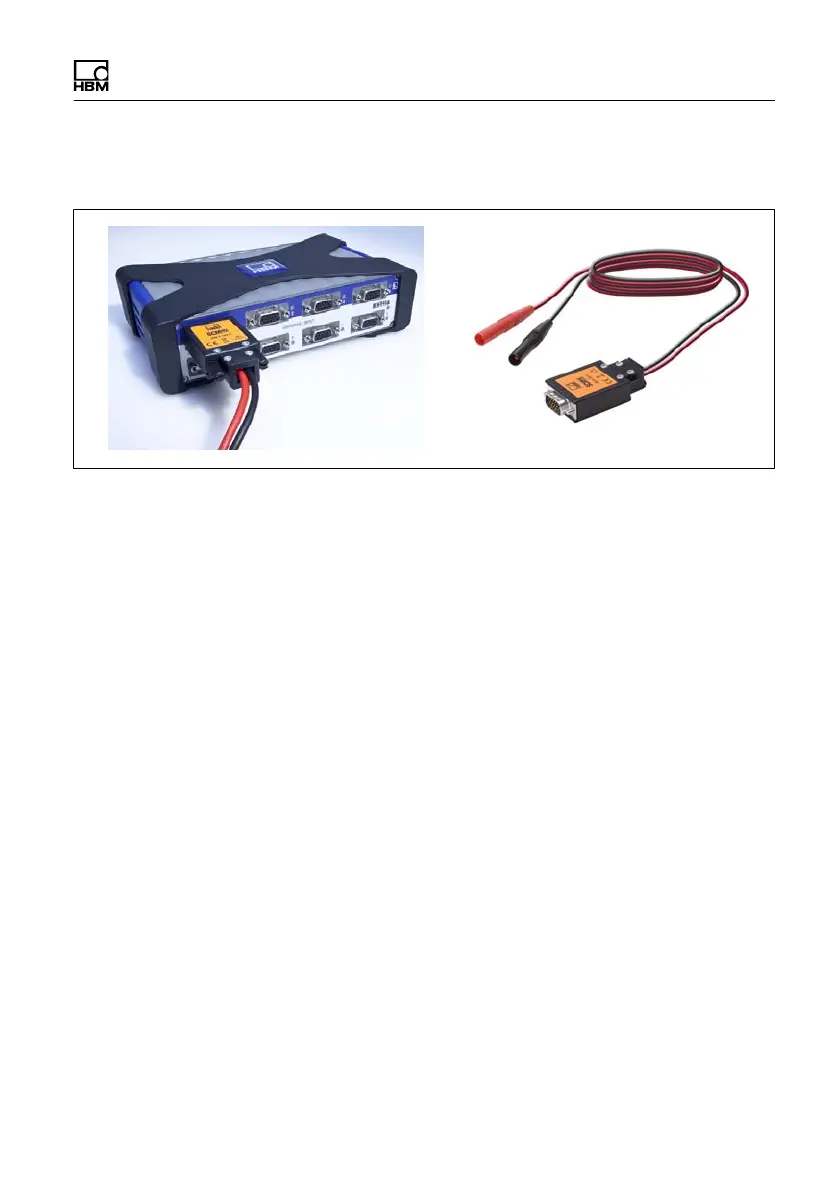

12.7 SCM-HV accessories

Order number: 1-SCM-HV

High-voltage signal conditioner for measuring differential

voltages within the rated data indicated in the specifica

tions together with a suitable QuantumX module.

Connection to 15-pin sockets of QuantumX modules

MX840B, MX440B or MX410B
