Modules and transducers
112 I3031-14.0 HBM: public Quantum
X
ConnectorPin
6 TEDS (-)
7 Sense lead (-)
8 Sense lead (+)
9 Signal ground
10 Measurement signal (-)
11 Active sensor supply 5 ... 24 V , (-)
12 Active sensor supply 5 ... 24 V (+)
13 Free
14 Free
15 Digital output
8.6.2 MX238B status display
Connection LED
System LED

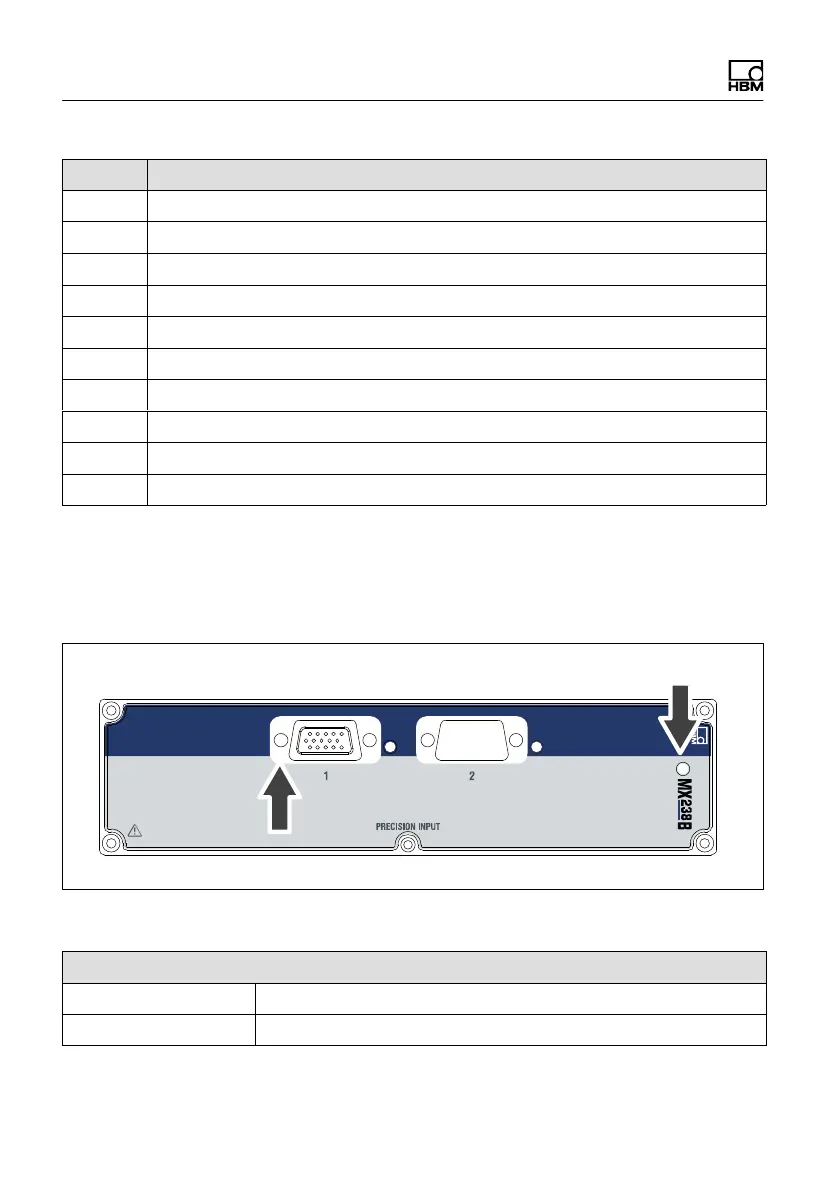

Fig. 8.10 MX238B front view
System LED
Green Error-free operation
Orange System is not ready, boot procedure running
