Functions and outputs
180 I3031-14.0 HBM: public Quantum
X
MX460B math channels
Keep in mind the following notes when working with
these channels:
S The maximum sampling rate is 4800 (2400) Hz
S The sampling rate of the channel must not be higher
than the sampling rate of the input channel.
S Filters set for the MX460B do not apply to math chan
nels. These channels are always unfiltered.
However, the input signal is filtered.
10.3 MX878B
The MX878B module is a module with eight analog out
puts that can be accessed on the front panel via BNC
sockets or plug terminals.
MX878B

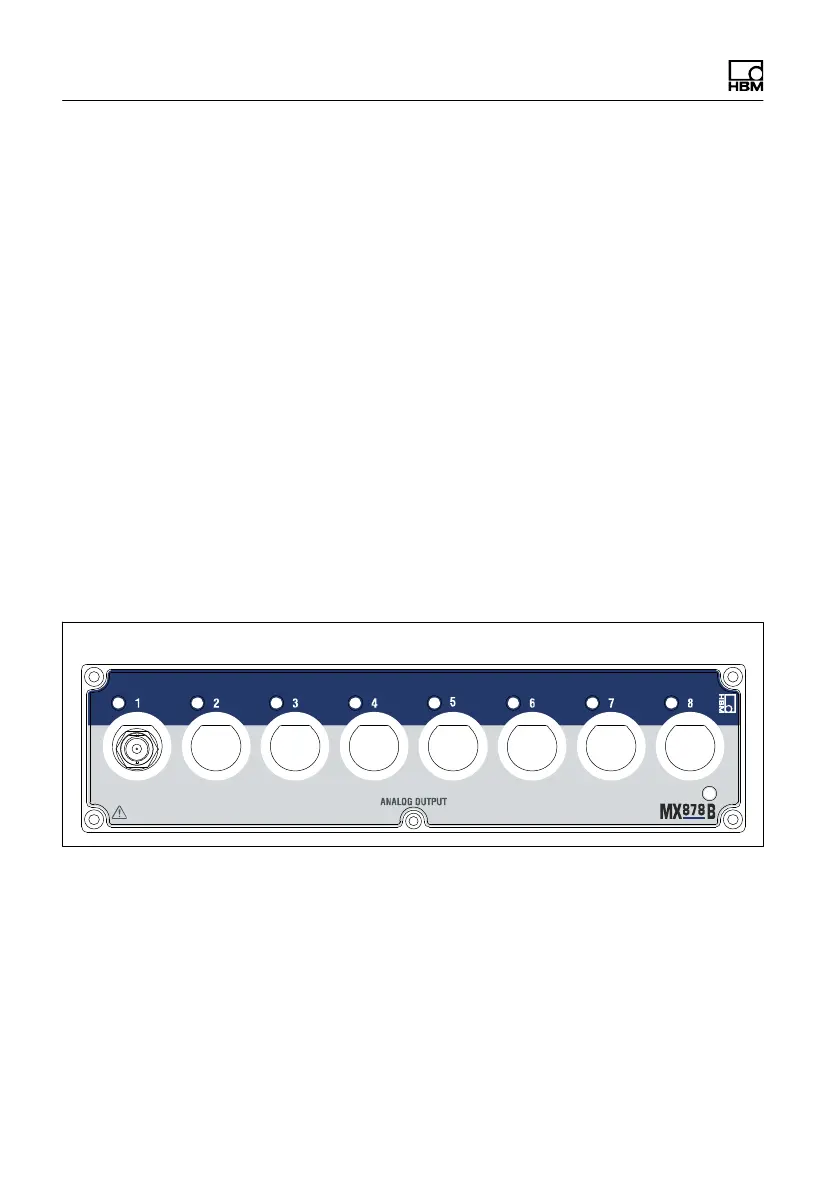

Fig. 10.3 MX878B front view
Two analog outputs each (1 and 2, 3 and 4, etc.) have
the same ground potentials, for the others electrical isola
tion applies between them and the voltage supply
ground.
