Modules and transducers
98 I3031-14.0 HBM: public Quantum
X

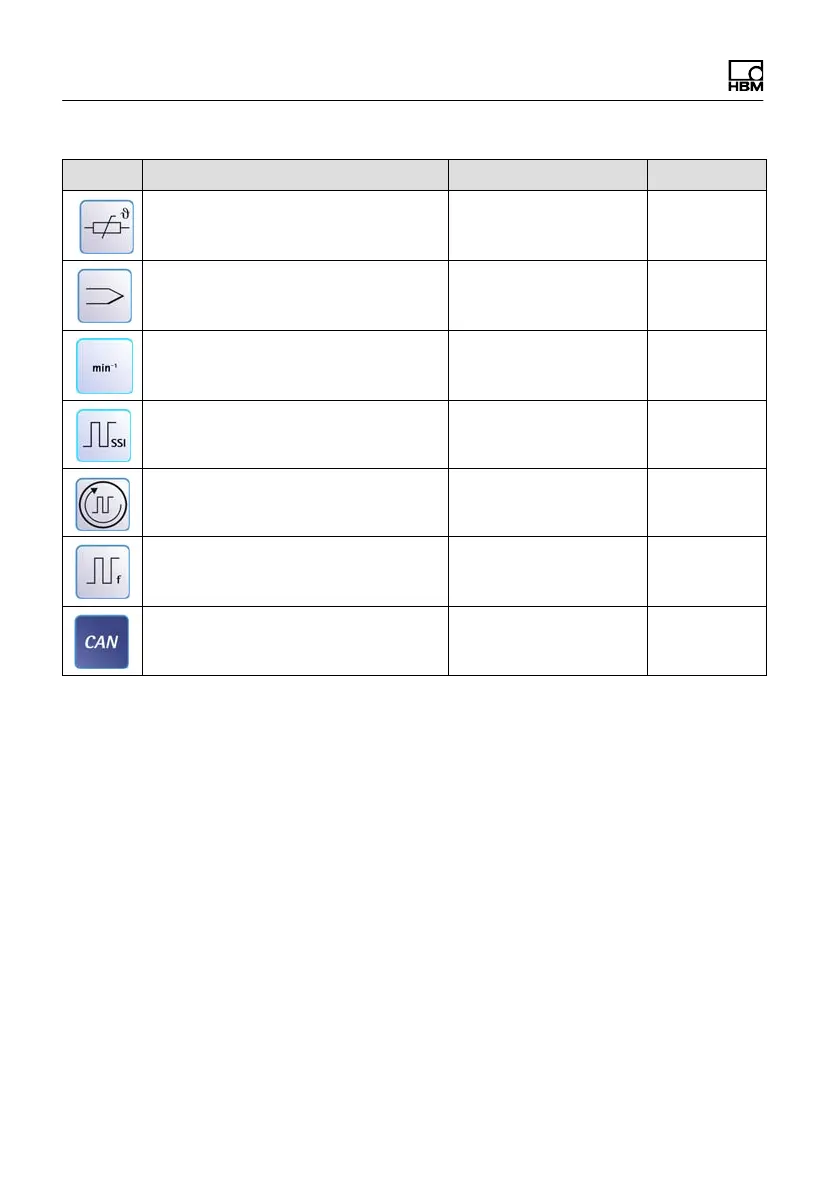

See pageConnection socketsTransducer type
Resistance thermometer PT100,
PT1000
1 ... 8 157
Thermocouple 1 ... 8 158
Incremental encoder 5 ... 8 from 161
SSI protocol 5 ... 8 167
Torque/speed (HBM torque trans
ducer)
5 ... 8 162, 170
Frequency measurement, pulse
counting
5 ... 8 from 161
CAN bus 1 173
8.2.1 MX840B pin assignment
So that insertion or removal of a transducer connection
can be unmistakably identified and, with TEDS, the chan
nel is automatically parameterized, Pin 4 and Pin 9 in the
connector plug must be bridged! If this bridge is missing,
no measurement values will be recorded at the connec
tion!
