Transducer connection
158 I3031-14.0 HBM: public Quantum
X
9.20 Thermocouples
Supported by the following modules: MX840B, MX440B,
MX1609/KB, MX1609T/TB
The module MX1609/KB support only thermocouples
type K; module MX1609T/TB supports type T(see page
121). In these modules, the required cold junction behind
each socket is directly integrated in the module.
In the MX840B and MX440B, a small plugin board
(1THERMOMXBOARD) to act as a cold junction must
be integrated into the SubHD plug (see next page).
+
-
Thermocouple
1-THERMO-MX BOARD
(soldered into the Sub-HD connector plug and contains a
cold spot compensation element and TEDS)
1
5
6
10
11
15
Maximum input voltage to housing and supply
ground: "60 V

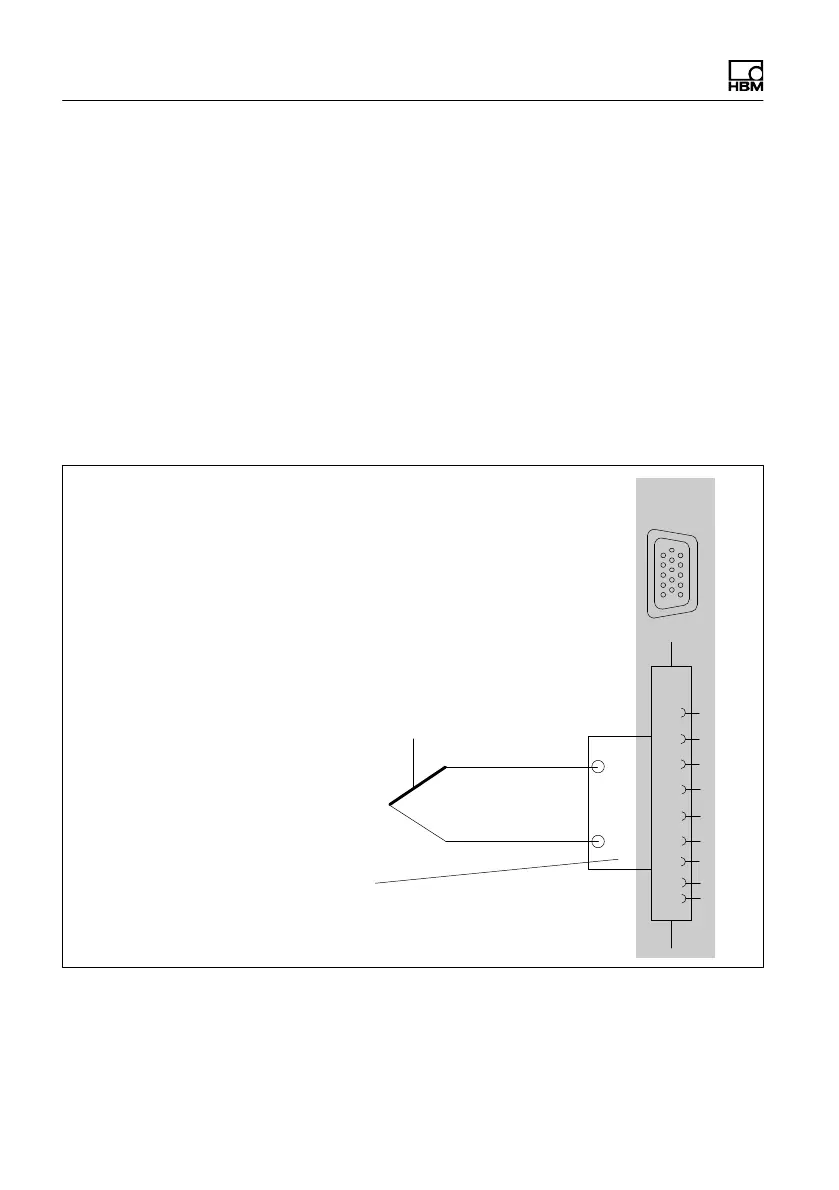

Connection for MX840B, MX440B
To Next Page
