Transducer connection
174 I3031-14.0 HBM: public Quantum
X
Notice
Ensure correct termination with termination resistors is
made, as shown in Fig. 9.1. The MX840B does not have
any termination. The MX471B has internal termination
that can be activated via software.
Termination
resistance
120
Node 1 . . . . . .
Termination
resistance
120
Node n

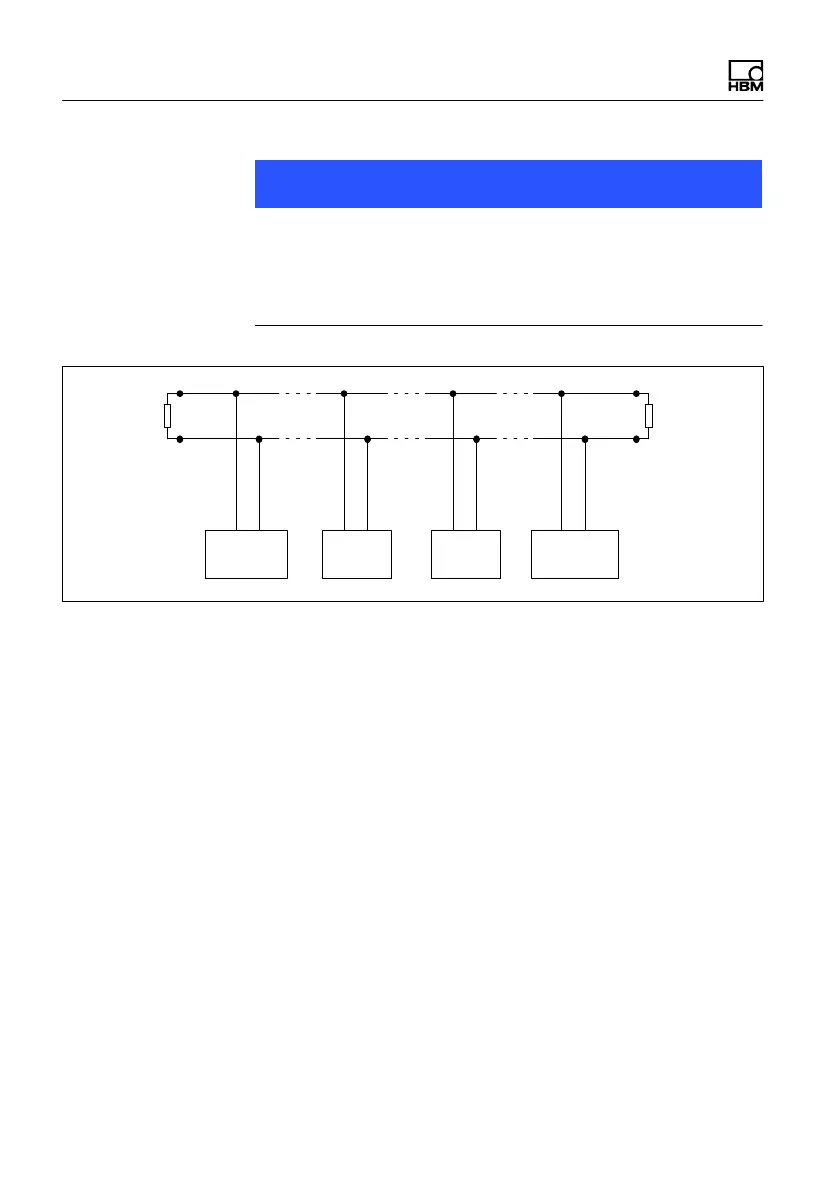

Fig. 9.1 Bus termination resistors
The adapter cable 1-KAB418 is used to connect the
D-SUB-15HD device sockets of the MX840B to standard
CAN plugs (D-SUB-9).
