MX1609
+
-
Thermocouple
-
+
-
+
Type Thermocouple material 1 (+) Thermocouple material 2 ()
K Nickel-chrome (color code green) Nickel-aluminum (color code white)
T Copper (color code brown) Copper-nickel (color code white)

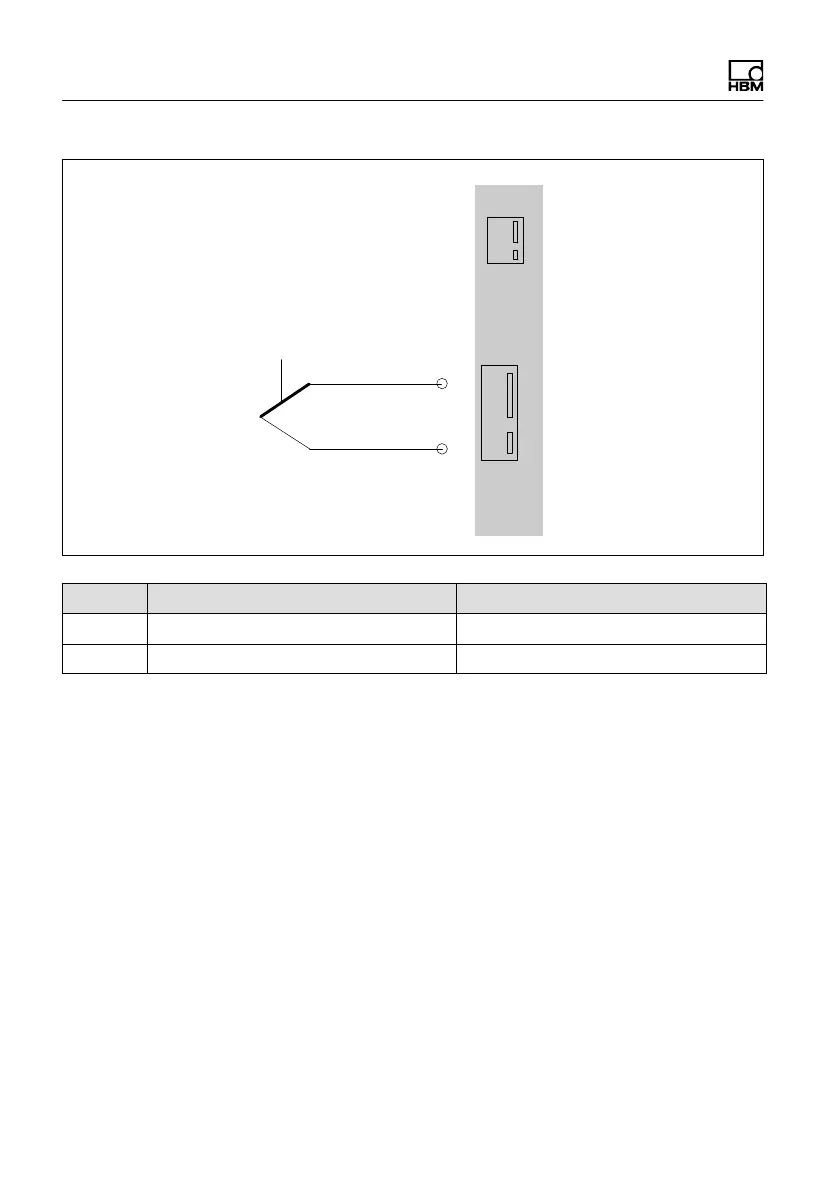

Connection of the thermocouple plug in the miniature
design.
