HBM MX440B - Page 129

Modules and transducers
Quantum
X
I3031-14.0 HBM: public 129
1
2
3
4
5
6
7
8
1
2
3
1‐wire EEPROM
(Maxim DS24B33+)
view from below
1
2 Data
3 No function
Bridge

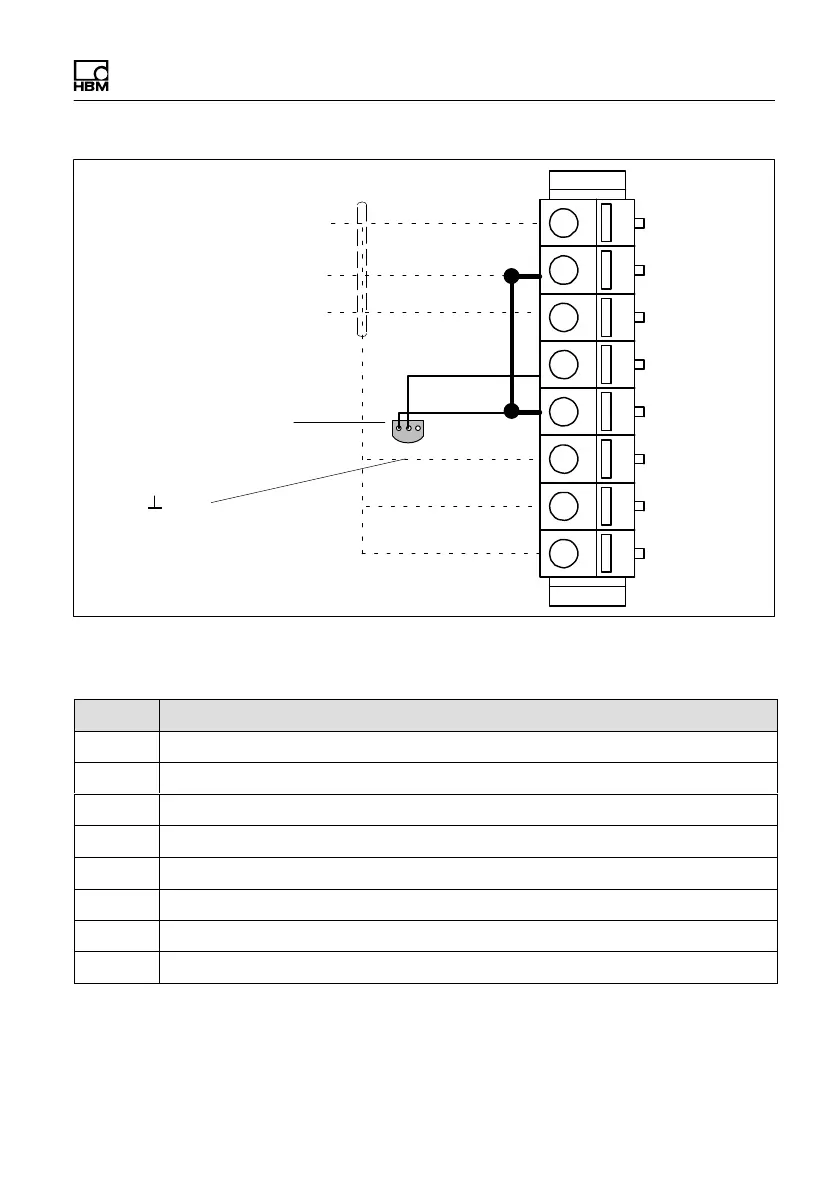

Fig. 8.16 Pin arrangement of connection plug, view from the
connection side
Pin Connector
1 Voltage output 10 V (+), 100 mV (+), IEPE (+)
2 Signal ground, TEDS (-)
3 Current input 20 mA (+)
4 TEDS (+)
5 Always connect with Pin 2! (Plug-in detection)
6 Active sensor supply (+)
7 Active sensor supply (-)
8 Housing (shield connection)
