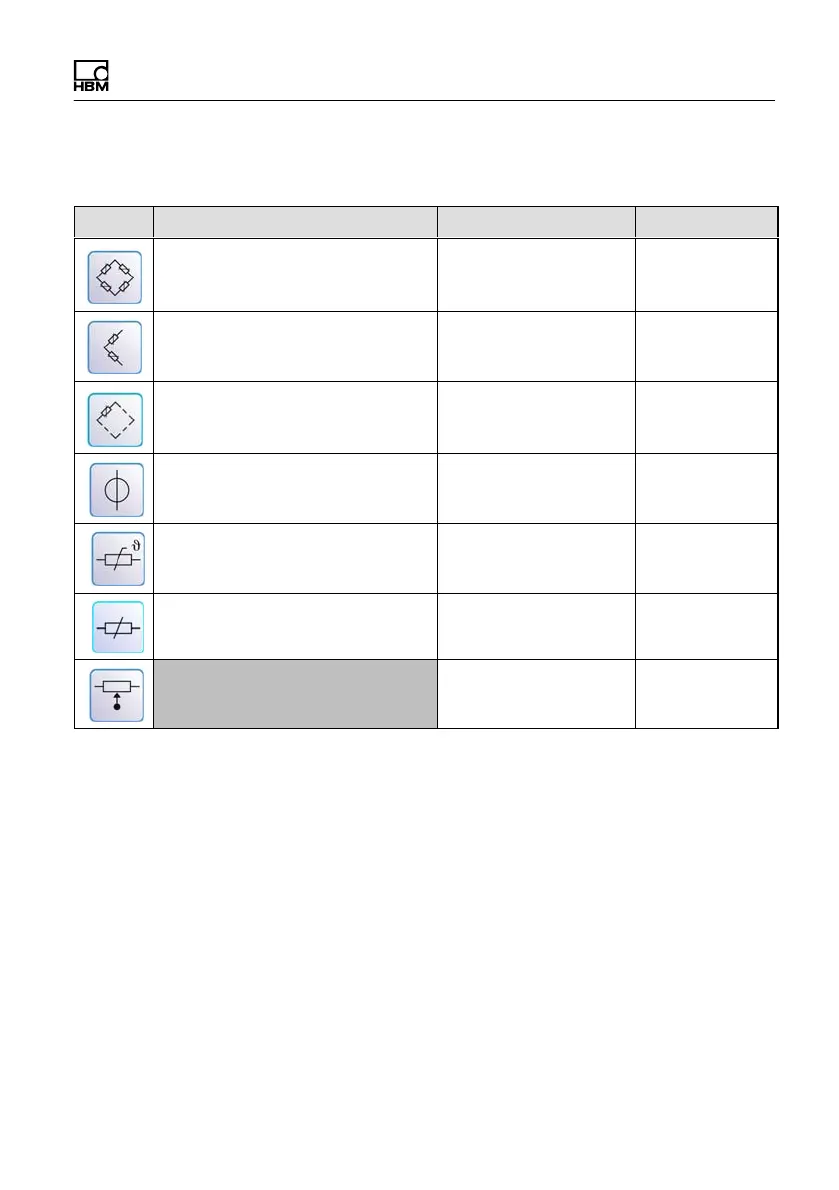

MX1615B connectable transducers
Transducer type Connection sockets See page
SG full bridge 1 … 16 138
SG half bridge 1 ... 16 141
SG quarter bridge 1 ... 16 141
Electrical voltage 1 ... 16 150, 151
Resistance thermometer Pt100 1 ... 16 157
Ohmic resistor 1 ... 16 156
Potentiometer (only MX1615B) 1 ... 16 146
The transducers are connected via 8-pin plug terminal
connectors
(Phoenix Contact FMC 1.5/8-ST-3.5-RFBKBD1-8Q).
The measurement channels are only electrically isolated
from the power supply of the MX1615, not from each
other.
